Paper Cup Forming Machine with Automatically

Product Description

Machine Advantage
XZT-150D is our latest model for double-wall paper cups. It produces 4oz to 16oz double wall paper cups at a stable running speed of 140-160ppm and is still in upgrading.
XZT-150D features full servo-driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market's most gear/chain transmission and cam design paper cup machines. It provides flexibility, speed, affordable capital cost, and low maintenance.

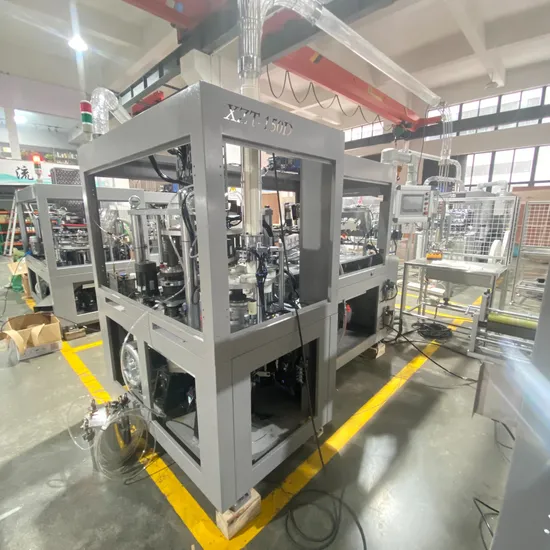

Machine Photo Machine Parameter

Model	XZT- 150D Paper Cup sleeve Machine
Bowl Size	4-16oz
Material	170-380GSM coated paper
Speed	140-160pcs/min
Power Supply	3phase 380V 50Hz, 34KW (running consumption is 11KW)
Air Supply	0.6Mpa (running consumption 0.5Nm3/min)
Dimension	2460x1620x1780mm
Weight	2800kgs

Machine Features

Conveyor Fan Wall Paper Feeding by Step Motor.

Conveyor Fan Wall Paper Feeding by Step Motor.Conveyor Fan Wall Paper Feeding by Step Motor.

Unique rotary shuttle feeding system by servo motor, make sure the paper feeding stable and fast, supported by automatic paper feeding conveyor.

Independent Swiss Leister hot air for paper fan preheating before ultrasonic sealing.

Ultrasonic sealing adopts servo motor and electronic cam to control the lift and time.

Cup reject system and finished cup collect system with machine

Automatic grease lubricant system

>>> Different Paper Cup Mchine Available as below:

paper cup machine	paper machinery
paper cup forming machine	high speed paper cup making machine
paper cup making machine	cup machine
paper cup machine price	coffee cup machine
paper cup machinery	biodegradable tableware machine
disposable paper cup making machine	paper cup production
double wall paper cup machine	disposable cup making machine
paper machine	ice cream bucket machine
carton machines	popcorn bucket machine
cup making machine	paper cup sleeve machine
coffee cup making machine	paper bowl machine

FAQ Q1- Is your company a factory or a trading company?
A1- We are a factory with more than 20 years of technical experience.
Q2- Where is your factory? How can I visit your company?
A2- Our factory is located in Wenzhou, Zhejiang province, China. It takes about 50 minutes from shanghai by plane(5 hours by train). All clients are warmly welcome to visit us.
Q3- What is the suitable material for your machines? What size of cup/bowl you can make?
A3- PE, double-PE Laminated cup paper, composite material, aluminum foil paper, etc. are suitable for our machines
We can make paper cups/bowls from 4oz-57oz.
Q4-What kind of machines do you produce?
A4. Full servo paper Cup making machine, full servo paper bowl-making machine, fully automatic intelligent cup packaging machine.
Q5- What certificates of machine do you have
A5- CE, and more than 10 pieces of Patent of the machine.
Q6- What exhibition have you participated in?
A6- China South Print/ 2021 China package and container fair in shanghai, etc. If conditions permit, we will go for more exhibitions at home and abroad.
Q7- Do you have an agent abroad?
A7- Yes, now we have an agent in Turkey. If you want to become our agent please contact us.
Q8- What about the payment term?
A8- 30%T/T in advance, the rest paid before shipment.
Q9- How's your after-sale service?
A9- We offer one year warranty. And we also can dispatch engineers if conditions permit. Online instruction is also available.
Q10- What information should I let you know if I want to get a quotation?
A10- Quantity, detailed size (top diameter, bottom diameter, and height), paper thickness&material.
