MIni Size Laboratory Yarn Dyeing Machine up to 8L

Product Description

Product Description

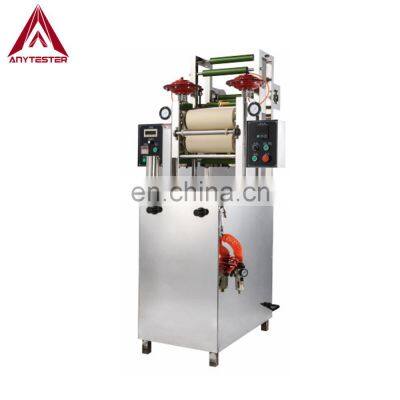

Product DescriptionAT293 Lab Sized Yarn Dyeing Machine is a mini dyeing machine used in lab to make a sample. It is suitable for dyeing sized yarn, jeans or fabric. It simulates the dyeing process on the sizing and dyeing site. Sized yarn passes the dye bath with temperature controller, via padder, deviation rectifying and manual tension frame, and then comes back to the dye bath again. Circulate the sized yarn for set time and then alarm at the end of dyeing.Product Structure:Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Details & FeaturesModelAT293Dye bath volumeMax. 8LFeeding trough volumeMax. 500mlHeat power2Kw, automatic temperature controlPadderType: VerticalRoll length: 300mmRoll diameter: 127mm Roll hardness: Shore 70°Roll material: NBRAir pressure: 0.03~0.6Mpa, adjustableLarge-section thin-film air cylinder, strong resistance to friction, automatic restoration when out of power and no left-rightdeviationDriving power0.37KwMachine speed0.4~4m/min, frequency controlFabric loop length required4.25mGuiding rollGood quality stainless steel with Teflon coatingControl displayPower display, speed display, display of counting, temperature display and alarm devicePower supplyAC220V 50Hz, single-phase, 2.5KwDimensions920mm×1030mm×1750mm (W×D×H)Weight200kgSpecificationPneumatic PadderVertical-typeLower drive roll and upper driven rollNBR roll300mm in length and 127mm in diameter70° Shore hardnessAir pressure 0.03~0.6Mpa, adjustableLarge-section thin-film air cylinder, strong resistance to friction and no left-right deviationVentilating FrameWith manual tension frameWith deviation rectifyingStainless steel guide rolls with Teflon coatingConvenient and easy to cleanDye BathMaximum volume: 8LFeeding trough volume: maximum 500mlHeating method: electric heatingHeating power: 2KwAutomatic temperature controlOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions920mm×1030mm×1750mm(L×W×H)Weight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
