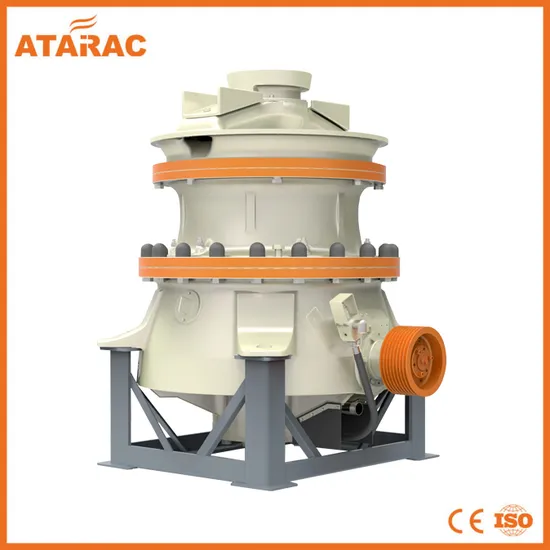

High Wear-Resistant Single Cylinder Cone Crusher for Quarrying

Product Description

High Performance,Low Power Consumption, High Automation, Low Operation Cost, Easy Maintenance&Safety Product Description
GPY series single-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher in whole China. It targets at high end market and is integrated with the advanced mechanical, electrical and hydraulic technologies as a whole, which achieves the perfect crushing efficiency. GPY cone crusher features in robust casting steel frame, forged alloy main shaft, and high accurate arc gear transmission system. Combined with one suitable crushing chamber from all optionals and with PLC automatic control system, the GPY cone crusher could fully play its performance and advantages. It is widely used for the fine and coarse crushing of various kind of stones and minerals, which features in high crushing efficiency, and could meets different crushing requirements for our clients.
Technique Parameter

SPECIFICATIONS	MODEL	GPY300S
	MAX. FEEDING SIZE	380MM
	DISCHARGE SIZE RANGE	30-50MM
	WEIGHT	/
CSS THROUGHPUT	210-430T/H
MOTOR	BRAND	SIMENS(BRAND)/FAMOUS IN CHINA
	POWER	250KW
	VOLTAGE	380V /440V
	FREQUENCY	50HZ/60HZ
MATERIAL	FRAME	Q235
	MANTLE	HIGH-MANGANESE
	BEARING	WYGS

FEATURES
1.Robust frame
The alloy casting frame is super robust and durable due to the FEM analysis in design.
2.Curved crushing chamber
According to the principle of lamination crushing and the feature of chamber wall wearing, the shape of cone crusher chamber is designed as curve, so as to obtain larger productivity, high quality and less wearing cost.
3.Tramp iron or overload protection
In case of tramp iron or overload, the hydraulic oil will be pushed into the accumulator, then the discharge opening is enlarged. After tramp iron or overload, the accumulator releases oil to the cylinder, so that the cone crusher can start normal operation. The failure performance probability of the machine is low, even long-time operating in crushing extreme hard rocks.
4.Transmission gear
Bevel and pinion gears can keep the crusher with big torque and high efficient transmission.
5.Optimized Eccentric distance is adjustable
Eccentric distance is adjustable (GPY300, 300S), the others' are fixed. A combination of main shaft, eccentric bushing and eccentric sleeves could easily get several eccentric setups by rotating eccentric bushing, to meet the requirement of different mining application.
6.Positive pressure anti-dust system
Special sealing and positive pressure anti- dust system ensure the clean of lubrication system. No extra grease seal and labor maintenance needed during operation.
7.Advanced reliable hydraulic lubrication system
Due to the modular design of independent lubrication system and hydraulic system, the crusher can obtain the protection function of hydraulic oil temperature, flow, pressure, and abnormal power, with the linkage to main motor starter control.
8.PLC intelligent operation system
Overload protection, tramp iron protection, wearing plate auto compensation and choke feeding can maximize the crusher efficiency.
9.Easy maintenance
Most parts can be assembled and disassembled on the upper and lateral side, which makes the machine maintenance labor-save and time-save.
10.High utilization of wearing parts
Special designed mantle and bow liner with high utilization, which greatly reduce the operation cost of wearing parts.
Unique Selling Point
Curved chamber,laminating crushing, which lead to high capacity, less platy grain content; arc-shaped transmission gear possesses bigger torque and better transmission performance; The alloy casting frame is super robust and durable, besides, the lower frame is specially enhanced; The positive pressure anti- dust system ensures the clean of lubrication system; PLC intelligent operating system; Packaging & delivery The cone crusher should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting. Application Site
Customer Service We gather specialists in different areas, have the abundant technical resources, and cooperate with several scientific research institutions and organizations, with maximum effort to provide prompt and effective service for our customers:
(1)Counseling
In order to provide more convenient and quick service, we have established free service consultation system, our after sales service engineers will reply promptly within 24 hours.
(2)Professional engineers make complete crushing solution against customers' requirement
ATAIRAC possesses a complete range of crusher and its auxiliary device and can provide whole series technical solutions of crushing, grinding, transport and product separation for mineral processing, construction industry, metallurgic industry, solid waste recycling industry.
(3)Operational personnel training
(4)Information and technique support
(5)Preventive maintenance and safety lecture FAQ

1. How long is the delivery time of your hydraulic cone crusher?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2. What are the payment terms?
The payment terms are L/C or T/T.
3. What's the minimum order quantity of your hydraulic cone crusher?
1 set. Our service philosophy is to satisfy the needs of every client.
4. How long is the hydraulic cone crusher warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker's wrong operation are not included.
5. What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide installation service, workers training service, etc.
6. Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
7. Can you give me a solution and quotation?
Of course, to provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
