Gypsum Block Dryer Machine Price Gypsum Hollow Block Sheet Manufacturer

Product Description

Machine Description

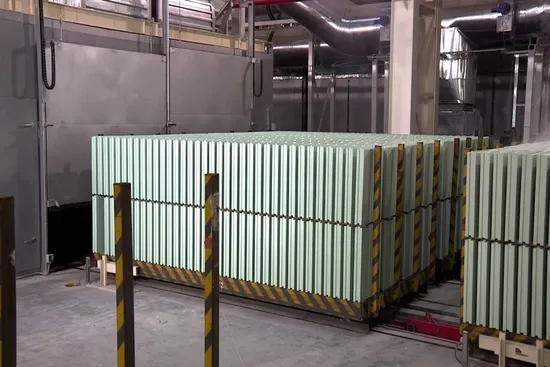

Gypsum block drying machine ----------- Free design drawings, technical discussion, select suitable gypsum block equipment.
------------ Since 1999 Experience in gypsum technology research.
------------ Direct factory, company legal person direct negotiations here.

Equipment characteristics:
1. Foreword.
As a new type of interior partition material, gypsum block has the advantages of light weight, high strength, fast construction, never cracking and increase Use area and many other advantages, has been widely recognized by the construction industry. The development of gypsum block industry also presents a momentum of bamboo shoots after spring, especially In particular, Beijing, Wuhan, Guizhou and other places have developed rapidly. However, the domestic gypsum block production line process is not perfect, only a few Enterprises have automatic drying kiln, most manufacturers rely on natural drying. Natural drying is seriously affected by the climate, especially in the rainy areas in the south The drying cycle is longer, and the molding equipment cannot run at full load; On the other hand, the degree of dryness is different, and the moisture content is different The quality is unstable; At the same time, the number of handling increases, the collision is serious, and the pass rate decreases. These have seriously affected the development of the industry. this From the practical, reasonable and energy-saving perspective, the scheme is designed under the principle of ensuring production scale, minimizing investment, and meeting environmental requirements Calculate this gypsum block drying kiln.
2.Design parameters
2.1. 24 hours drying production of 100 or 80 hollow and solid specifications of 622.08. 2.2. kiln car specification 2.8*5.5 meters, the average kiln every 12 hours 4-5 cars.
3.The temperature control and humidification system of each zone of the kiln are shown in Table 1.

Zone	Temperature control	Humidification system
Predrying zone	Temperature <90 ° C	2 pcs
Primary drying zone	Temperature <85 ° C	2 pcs
Secondary drying zone	Temperature <80 ° C	2 pcs
Three-stage drying zone	Temperature <75 ° C	2 pcs

4.Note: Each section only dried free water, can not remove CaSO4.2H2O calcium sulfate crystal crystal water.
5. The air intake volume and the total motor power in each area of the drying kiln are shown in Table 2.

Zone

Maximum hot air volume

Motor power

Predrying zone	82500	19.5KW
Primary drying zone	82500	19.5 KW
Secondary drying zone	82500	19.5 KW
Three-stage drying zone	82500	19.5KW

6. Drying kiln process flow
6.1Forming machine → Pre-entry cellar area → Predrying zone(Moisture removal system and Hot air unit) → Primary drying(Moisture removal system and Hot air unit) → Secondary drying(Moisture removal system and Hot air unit) → Three-stage drying(Moisture removal system and Hot air unit) → Exit cellar area → Finished product packaging
6.2.Heat source: the scheme adopts steam fin heating, high heat exchange efficiency, precise temperature control and small loss. The hot air radiator mixes the hot air in the mixing chamber with the cold air in the kiln to automatically adjust the temperature.
6.3.Air distribution: The use of frequency conversion large flow air supply, the four areas independently to achieve temperature, air volume control. Each section is heated by a hot air radiator on the drying 2 side. The hot air circulation system is formed from the bottom up or from the top down through the circulation fan, to maintain the uniformity of the product after drying and improve the drying efficiency.
7. Moisture removal system
This drying kiln is equipped with 8 sets of external dehumidification systems. When the temperature and humidity meter detects that the humidity in the kiln reaches the condition of dehumidification, the dehumidification air exhaust machine will force out the moisture.
8. Kiln body
The new fireproof thermal insulation composite rock wool kiln body is used. Because the kiln is a low-temperature drying kiln, the inner layer is 100 thick rock wool substrate, the inner layer is galvanized embossed to strengthen and fix, and the outer layer is embossed color steel. Achieve fire, heat insulation, heat preservation effect. The kiln body adopts 40*40 galvanized square pipe to strengthen the substrate, and the drying kiln bottom track and the top of the drying kiln are divided into heat dissipation mesh holes to ensure that the whole drying room is evenly heated.
9. Heat
In order to ensure the temperature uniformity of the temperature division in the drying kiln, the drying kiln is equipped with 3 D-class steam furnaces and 24 sets of heating systems, each set of heating systems is responsible for heating the area of 3 meters, using biomass heating, fast heating speed, full combustion, no black smoke emission.
10.Control system The kiln adopts the well-known brand Huichuan PLC controller touch screen, ADT inverter, temperature sensor to detect the temperature in the kiln and automatically make fire control to keep the temperature in the kiln. When the high temperature humidity meter detects that the humidity content in the kiln reaches a certain amount, the dehumidification function will be automatically opened. The drying kiln adopts ATD frequency conversion technology, can be quantitative automatic air supply, to ensure that the hot air circulation in the drying kiln uniform heating, drying error is less than 5%, than the traditional heating power saving more than 30%. 11. Hot air circulation system
The kiln adopts 110 high temperature resistant circulating fans, which can fully heat the gypsum blocks to ensure that the kiln will not burn out the motor during continuous operation.
12. Total drying kiln capacity 9 kiln cars (size length 5500* width 2800), total drying time from kiln head to kiln tail 24h, average every 12 hours,drying 622.08 square meters.

13. Drying kiln daily biomass particles 2160Kg, single consumption of 3.5Kg/square.

14. The total drying power load is 112kW, the daily maximum power consumption is 2690KW, the daily minimum power consumption is about 1880KW, the single consumption is 1.51° electricity /.
15. Equipment site: The drying kiln body occupies a site length of 50.02 meters wide 4.06 meters high 3.3 meters (excluding electric control box and maintenance channel)
Ground)
Technical specification

Capacity	6-8times / hour
Rated voltage	380 V
Power	50 KW
Workers requirement	3 - 5 persons / shift
Area covered	500 m2
Workshop height	6 m

Model Size Flow Process
Customize the size of the gypsum block:
Process flow and configuration:
Start control cabinet → automatic water mixing machine → automatic raw material to screw conveyor → automatic metering hopper → special additive → pneumatic valve unloading material → mixing machine → start the hydraulic pouring molding box → automatic scraping groove → gypsum block forming ejector → automatic palletizing fixture palletizes into two layers of cubes → forklift lifts gypsum block cubes storage or production.
Construction Situation
Natural drying gypsum blocks. Palletizing gypsum blocks. The way of construction:
We offer technical methods for FREE.
Factory Introduction Advantage
Shandong Dalu New Material Environmental Protection Technology Co., Ltd.
-------- Direct factory, company legal person directly receive negotiations here.
We a national professional manufacturer of energy-saving and environmental protection wall material mechanical equipment in China. Our company was founded by father in 1999 and was originally named LIU'AN DALU Building Materials Machinery Group.
We have fully implemented the ISO9001 quality standard system certification and can customize various specifications of high-precision gypsum block production lines, prefabricated wall panel production lines, and composite insulation block production lines according to customer needs.
We assemble and manufacture over 1000 sets gypsum brick equipment every year and export them to the world. Our company has comprehensive Chinese high-tech enterprises including market research, technology development, equipment manufacturing, sales, after-sales service, free technical consultation, and free visits.
Our factory is located in Changqing District, Jinan City, Shandong Province, with beautiful mountains and waters. The registered assets of our company are 5 million dollars, covering an area of 80 acres and a factory area of 10000 square meters.
Our company has successively passed the quality management system certification, applied for multiple utility models and invention patents, and achieved scientific and technological achievements.We have also organized the preparation of multiple technical specifications and atlases for the application of prefabricated lightweight gypsum composite panels, high-precision prefabricated gypsum blocks, and internal partition walls.
Currently, the monthly shipment volume can reach up to 100 sets. Over the years, we have been investigating the gypsum block customer manufacturers, visiting and learning the production process. Through learning from each other, we have absorbed the essence of the industry, and combined with our leading technology in the gypsum block equipment industry for more than 20 years, we have developed high-precision and high-capacity gypsum block equipment.
Willing to create brilliance with you together.
Factory Advantages:
Professionalism
Research gypsum machinery for 20+ years, professionalization and focus, we do not study other unrelated products
Fast delivery
We currently have two workshop and nearly 100 people manufacturing gypsum block equipment. We can complete a large gypsum block equipment in about 50 days, and we have been Top one in the Chinese market.
24-hour service
We have several professional staff who are responsible for receiving messages from customers 24 hours a day and providing technical support during the machine production process.
Engineers around world
Our factory cooperates with mechanical engineers from many countries. Customers can choose engineers from nearest countries to install equipment.
There are many gifts
At the time of delivery, we give many consumable parts free of charge, such as rubber rings button etc, and customers can replace the wearing parts freely. Next days,if customers also need wearing parts, we still send them free of charge.
Free technical advice drawings before sale
Free contact for the most suitable machine. Free professional design, including plant layout, machinery diagram, equipment list, ect for each customer especially. Exhibition Important Clients
We have cooperate with different clients all over the world,more than 100 countries!
And get excellent feedback!
Factory Certification
Our factory created own brand.
Our factory through the ISO9001 quality testing certification and a series of quality certification patent certificates and we are China's high-tech enterprises.
We accept different countries with different requirements of the certificate declaration, about 7-10 days to get the certificate.
Delivery
After-Sales Service
1. We supply all technical surports for raw material supplier information.
2. Our process/ installation/ electricity engineers will stay at your plant until your workers know how to produce good products.
3. After installation, we will test your production, and sign agreement with your workers after succesfully testing.
4. 24 hours technical support by phone, email or skype (email or skype).
5. One years warranty period.
6. Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
7. By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
8. Delivery is not the purpose, our purpose is to improve the customer's construction technology, we provide free technical guidance.
FAQ
1. When can we arrange shippment?
We usually arrange shippment within 20days after getting deopsit,
but customized machines should be more than 30days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4.What is the gypsum block?
A: Gypsum Block is a kind of light walling material, made by Gypsum Powder and adhesive material, mixing with water and being molded and dried.
5.What is the advantage of Gypsum Block?
A: Environment-protection andEnergy-saving, right now they are the most popular in China now.
6.How many types of Gypsum Block so you have?
A:Hollow Gypsum Block and Solid Gypsum Block. Hollow blocks are more popular.
7.Normally where can I use the gypsum blocks?
A: It is widely used in building as inner partition wall.
8.Why we use them as partition wall?
A: Light weight / Fixed shape dimension / Fire-proof / Shock-proof / Heat insulation
9.What is the regular size of gypsum blocks?
A: The regular size of blocks is 666 (600)*500cm, the thickness will be 80 / 90 /100 /120 / 150 / 200mm, Definitely we can
modify other sizes too
10.What is your Gypsum Block's performance?
A:Air sound insulation: 40.5db;
Fire resistance:186min;
Flatness: ≤1mm/m2;
11.What is the working capacity of your machine?
A: Normally 6-8 molds / hour
12.How does your machine come to me?How many parts do you have?
A:Molding machine / Mixer / Hydraulic station / Control panel / Screw conveyor / Water metering bin / Powder metering bin /Mechanical arm clamp / Ground clamp
13.What is your machine's working voltage and power?
Voltage: 380V(+/-10%~15%), 3 phase
Power: 19KW-25KW
