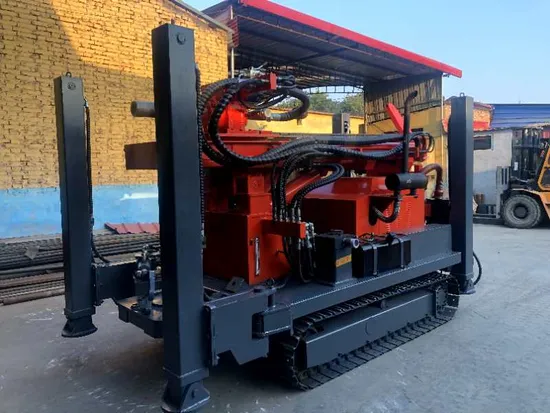

Water Well Drilling Rig Borehole Rigs Crawler Mounted Drill Rig

Product Description

Product DescriptionIntroducing the GL series Crawler Water Well Drilling Machine with Rubber Chassis, a cutting-edge solution designed for deep digging and drilling operations.
This high-performance drilling rig is equipped with a durable rubber chassis, ensuring stability and maneuverability even in the most challenging terrains.
Product Parameters

Item	GL200s	GL350S	GL500S	GL600S
Max. Drilling Depth	200m	350m	500M	600M
Drilling Hole Dia.	90-315mm	105-325mm	138-350mm	138-350mm
Working Pressure	1.7-3.0Mpa	1.25-3.5Mpa	1.8-3.5Mpa	2.1-3.5Mpa
Air Consumption	17-35m3/min	16-55m³/min	40m³/min	40m³/min
Drill Pipe Length	3m	3m/6m	3m/6m	3m/6m
Drill Pipe Dia.	76mm/89mm	76/89/102mm	108mm/114mm	108mm/114mm
Axial Pressure	4T	6T	/	/
Lifting Force	14T	26T	27T	29T
Lifting Speed	25m/min	24m/min	24m/min	24m/min

ApplicationWidely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
With its exceptional capabilities, this machine is the perfect choice for professionals in the water well drilling industry.The Rubber Chassis Drilling Rig is designed with the utmost attention to safety and operator comfort. The ergonomic cabin provides a comfortable working environment, equipped with modern controls and instruments for easy operation. The machine is also equipped with advanced safety features, including emergency stop buttons and protective guards, ensuring the well-being of the operator throughout the drilling process.

Detailed Photos
GL200S
>>With automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
>>Drilling Efficiency is 10-35 M/h, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
GL300S
>>Equipped with a robust diesel engine boasting a power of 77kw, this drill machine is built to handle even the most challenging drilling tasks.
>>Its impressive maximum drilling depth of 330 meters allows you to explore deep into the earth's surface, uncovering valuable resources and expanding your drilling capabilities.GL350S
>>Borehole diameter can up to 105-325mm.
>>The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, convenient operation.
GL400S
>>Crawler type down the hole Water well drilling rig 400m well water drilling rig for sale
>>It adopts domestic famous 65kw diesele ngine.which features strong power and ability to meet the working require-ment of various operation environment. GL600S
>>It's automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
>>Moving speed is 2.5 KM/h, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
>>Compact structure,centralized handle, small footprint, light weight, strong decomposition, easy to move. Suitable for plain and mountain areas.
After Sales ServiceWarranty of Crawler Type Water Well Drilling Rig:
(1)Within the period of the first year after delivery, the main parts are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service,
but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.Related product We can supply full set of drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
Drilling equipment:Air compresoor and Mud pump.
Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling rig/RC drilling rig/Rock drilling rig etc.
