Factory Supply Good Price PVC Water Drainage Conduit Pipe Making Machine Extruder

Product Description

Product Description
This pvc pipe production line includes conical twin screw extruder, spiral die head, vacuum tank, water tank, haul-off, no-dust cutter or planetary cutter, belling machine with O-ring sockets or rectangular sockets or U types of sockets. Our PVC pipe machine can make pipes ranging from 16mm to 630mm, wall thickness range of 1-30mm.
pvc pipe production line has many usages,such as: buildings,drainage,agricultural drainage, compressed air transportation and cable line.The pipes of thickness can be varied.
Breif introduction
1.The pvc pipe production line is suitable for the production of 20-315mm PVC conduit pipes .2.The main raw materials for the production of PVC pipes are PVC resin, calcium powder and additives.3.The pvc pipe production line is a conical twin-screw extruder for PVC powder raw materials.4.The pvc pipe production line is a dual-pipe output that maximizes the performance of the machine.5.We also have other diameter PVC pipe machines.

Detailed Photos
Plastic extruder
1.World famous brand electrical component such as Siemens, ABB etc .
2.High torque gearbox with adopts NSKF bearing;
3.Bimetallic screw and barrel;
4.Intelligent PLC controlling system with human-friendly interface.
Mould
1.Material of mold body is Steel 45# ,harden treated and polished.
2.Material of inner mould parts is 40Cr.
3.The material of calibration bushing is Stannum bronze.
4.The diameter can be customized.
Vaccum calibration water tank:
1.Calibrating the pipe outer diameter and cooling pipe.
2.The material of water tank is stainless steel 304.
Hauling off machine
1.Function :haul off PE pipe stably and synchronal with extruder speed.
2.Clamping mode is pneumatically.
3.speed adjusting mode is frequency conversion.

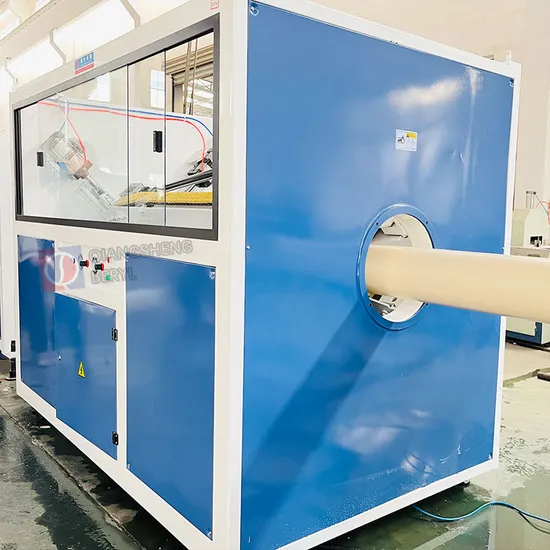

cutter machine
1.Function:cut PVC pipe in fixed length.
2.Cutting type:automatic meter counting cutter.
Product Parameters

Model	Pipe range	Extruder	Max output	Max speed	Total power
16-50mm	SJSZ65/132	250kg/h	10 m/min	85 kw
PVC-63	16-63mm	SJSZ51/105	150 kg/h	10 m/min	60 kw
PVC-110	50-110mm	SJSZ55/110	180 kg/h	10 m/min	70 kw
PVC-160	63-160mm	SJSZ65/132	300 kg/h	5 m/min	90 kw
PVC-250	110-250mm	SJSZ80/156	400 kg/h	3.5 m/min	120 kw
PVC-315	160-315mm	SJSZ80/156	400 kg/h	3 m/min	160 kw
PVC-450	250-450mm	SJSZ92/188	700 kg/h	1.5 m/min	200 kw
PVC-630	315-630mm	SJSZ92/188	700 kg/h	0.9 m/min	230 kw

Application
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes. 2. Low fluid resistance: The wall of PVC-U pipe is very smooth and has little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity is 20% higher than that of cast iron pipes of the same pipe diameter and 40% higher than that of concrete pipes. 3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, and corrosion resistance, and are not affected by damp water and soil pH. No anti-corrosion treatment is required when laying pipelines. 4. Anti-bite: PVC-U tube is not a source of nutrition, so it will not be corroded by rodents. According to a test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes. 5. It has good water tightness: the installation of PVC-U pipes, regardless of whether it is connected by bonding or rubber ring, has good water tightness. 6. Performance test: curing time, shrinkage, splitting strength, tensile performance, peeling strength, thermal stability, pot life, storage period, release of harmful substances

Certifications
Packaging & Shipping

Company Profile
Zhangjiagang Qiangsheng Machinery Co., Ltd. is professional with plastic machines . We devote ourselves to the development, research and production of plastic machines and liquid food and beverage packing and filling machines.
Please feel free to contact us for further details. We are looking forward to forming a profitable business relationship with your company in the near future. We welcome you to visit our company at any time.
