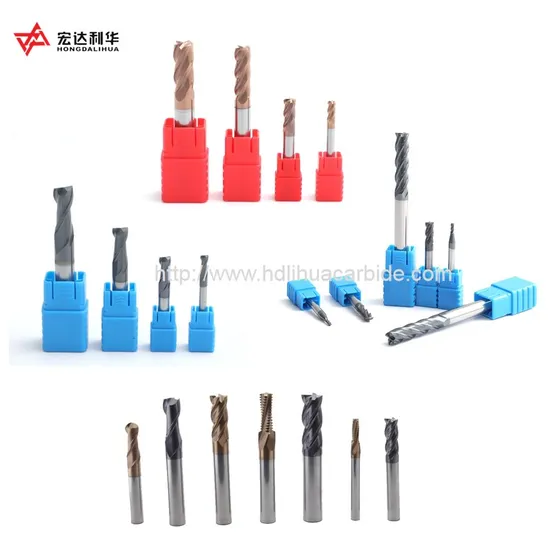

Top Hardness Carbide Flat End Mill Ball Nose Cutter Radius Corner End Mills with HRC45/55/65 From Factory
| US$1.98-25.80 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
carbide end mill drill bits
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Milling Machine
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.02mm
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Name
Carbide End Mill
Machine Type
Milling Maching
Performance
Excellent Wear Resistance
Usage
General High Speed Cutting
Business Type
Manufacturer
Advantage
Over 20 Years Experience in This Line
Transport Package
Standard or Customized
Specification
ISO9001 SGS
Trademark
LIHUA
Origin
Zhuzhou, China (Mainland)
Production Capacity
5000kg/Mon
Product Description
Top hardness carbide end mill ball nose cutter raduis corner end mills with HRC45/55/65Specifications:
1.Hardness:HRC45/50/55/60/65
2.Flutes:2 flutes or 4 flutes
3.Helix Angle: 35 degree
4.Centered Cutting: Yes
5.Type: Square End Mill / Flat end mill / Metal cutting tool
6.Workpiece material: Steel, mould steel, low alloy, hardened steel, staninless steel, alloy steel
7.Coating:TiAlN
8.Tool body material:Tungsten solid carbide
9.Color: Black, yellow
Standard size or make to order for special specifications
| HRC Grade | 55 | |
| Sharpe of head | Flat | |
| Flutes | 4 | |
| Over Length | 50 mm | |
| D (Dia. of edge) | 8.0 mm | |
| d (dia. of shank) | 8.0 mm |
Unit:mm
| specification | cutting | shank diamete | flute length | overall |
| D2.0*6*D4*75L | 2.0 | 4 | 6 | 75 |
| D4.0*11*D4*75L | 4.0 | 4 | 11 | 75 |
| D6.0*15*D6*75L | 6.0 | 6 | 15 | 75 |
| D8.0*20*D8*75L | 8.0 | 8 | 20 | 75 |
| D4.0*8*D6*100L | 4.0 | 6 | 8 | 100 |
| D6.0*15*D6*100L | 6.0 | 6 | 15 | 100 |
| D8.0*20*D8*100L | 8.0 | 8 | 20 | 100 |
| D10.0*25*D10*100L | 10.0 | 10 | 25 | 100 |
| D12.0*30*D12*100L | 12.0 | 12 | 30 | 100 |
| D16.0*40*D16*100L | 16.0 | 16 | 40 | 150 |
Description of solid carbide end mills ,CNC end mill ,hardness end mill
| Flutes No. | 2/3/4 Flutes |
| Material | HSS,Carbide etc. |
| Coating | AlTiN,NACO BLUE/NACO BLACK/TiN etc. |
| Helix Angle | 35°,45° |
| Hardness | HRC45/55/58/65 |
| Size | Overal Length:50-150mm |
| Customized | Accept |
| Smooth Finish | Highly Polished |
| Feature | Excellent chip evacuation |
| Measurement | Metric |
| WEIX45HRC Aluminum Square series - 2F/4F | ||||
| Material:© WC=0.8(UM)Co=10 HRA=92.2 HV=1620 Rupture=4000(kg.N/mm²) | ||||
| Mode | FD Flute Dia | SD Shank Dia | FL Flute Length | TL Total Length |
| WEIX601 | 3 | 3 | 8 | 50L |
| WEIX602 | 1 | 4 | 3 | 50L |
| WEIX603 | 1.5 | 4 | 4 | 50L |
| WEIX604 | 3 | 4 | 5 | 50L |
| WEIX605 | 2.5 | 4 | 6 | 50L |
| WEIX606 | 3.5 | 4 | 10 | 50L |
| WEIX607 | 4 | 4 | 11 | 50L |
| WEIX608 | 5 | 5 | 13 | 50L |
| WEIX609 | 1 | 6 | 3 | 50L |
| WEIX610 | 1.5 | 6 | 4 | 50L |
| WEIX611 | 2 | 6 | 5 | 50L |
| WEIX612 | 2.5 | 6 | 6 | 50L |
| WEIX613 | 3 | 6 | 8 | 50L |
| WEIX614 | 3.5 | 6 | 10 | 50L |
| WEIX615 | 4 | 6 | 11 | 50L |
| WEIX616 | 5 | 6 | 13 | 50L |
| WEIX617 | 6 | 6 | 15 | 50L |
| WEIX618 | 7 | 8 | 17 | 60L |
| WEIX619 | 8 | 8 | 20 | 60L |
| WEIX620 | 10 | 10 | 25 | 75L |
| WEIX621 | 12 | 12 | 30 | 75L |
| WEIX622 | 14 | 14 | 35 | 100L |
| WEIX623 | 16 | 16 | 40 | 100L |
| WEIX624 | 18 | 18 | 40 | 100L |
| WEIX625 | 20 | 20 | 40 | 100L |
| Lengthening | ||||
| WEIX626 | 3 | 3 | 15 | 75L |
| WEIX627 | 4 | 4 | 20 | 75L |
| WEIX628 | 5 | 5 | 25 | 75L |
| WEIX629 | 6 | 6 | 25 | 75L |
| WEIX630 | 7 | 8 | 25 | 75L |
| WEIX631 | 8 | 8 | 30 | 75L |
| WEIX632 | 3 | 3 | 15 | 100L |
| WEIX633 | 4 | 4 | 25 | 100L |
| WEIX634 | 5 | 5 | 30 | 100L |
| WEIX635 | 6 | 6 | 30 | 100L |
| WEIX636 | 8 | 8 | 35 | 100L |
| WEIX637 | 10 | 10 | 40 | 100L |
| WEIX638 | 12 | 12 | 45 | 100L |
| WEIX639 | 8 | 8 | 40 | 150L |
| WEIX640 | 10 | 10 | 50 | 150L |
| WEIX641 | 12 | 12 | 50 | 150L |
| WEIX642 | 14 | 14 | 70 | 150L |
| WEIX643 | 16 | 16 | 70 | 150L |
| WEIX644 | 20 | 20 | 80 | 150L |
Super raw material
| HRC45 | HRC55 | HRC60 | HRC65 | |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) | |
| Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2 | Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 | Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 |
|
Super coating
| Item | AlTiN | TiAIN | TiSiN | NACO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Company Informations
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in zhuzhou city which is the hometown of tungsten carbide in China .
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc .
Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Cusomized cutter:woodworking tool, V-cutter, textile cutter, shoes cutter ects. Any kinds of customized carbide products .
Monthly Capacity of 15Ton
We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
