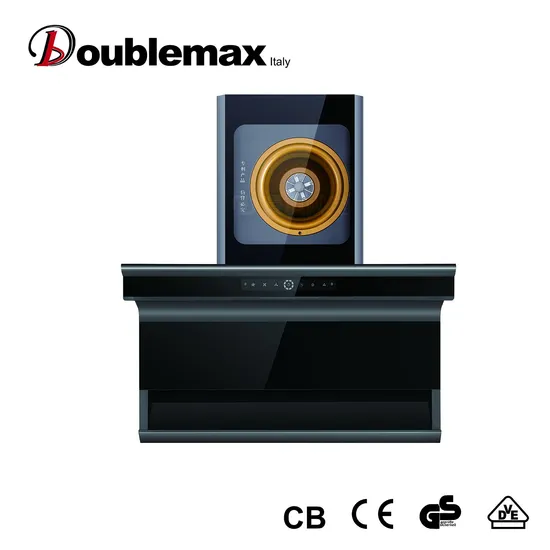

Kitchen Appliance Top and Down Suction L Shape Range Hood

Product Description

kitchen appliance top and down suction L shape range hood range hood features

Product Type	Control	Fan Speed	Grease filter(s)	Lamp Type
Range hood	Touch	2	2*SS	2*1.5W LED

Max noise level (dBA)	Illumination power (W)	Max wind pressure (Pa)	Max extraction rate (m3/h)	Motor rating (W)
≤57	2×1.5	≥280	1200	1200

Smoke Sensor	Heat sensor	Remote Control	Bluetooth Control	Ducting Pipe Diameter (mm)
Optional	Optional	Optional	N/A	160

1. Full sealed Motor at 1000m3/hr airflow High quality SUS body
2. Pure white safety glass 2 x 40cm telescopic chimney ducts
3. 2 speeds sensor touch control
4. stainless steel Filters
5. 2 x 2W LED lamps
6. Product size: 900×460×670mm
7.Big LCD display
8.Body sensor
Range hood Description 1
The motor house design use archimedean spiral and hydrodynamics theory improved the wind pressure and volume with the low noise.
1.Noise reduction rate 13.5% at the same wind volume
2.Flow improvement 21.1% with the same noise
3.Pressure boost 17.8% with the same noise

Range hood Description 2
Central axis of Impellor and motor design guarantees the steady operation
Double inlets motor house design
Organic silicon painted surface, heat -resistant and anti-corrosion

Range hood Description 3
The motor have 2 type:model A is totally-enclosed type,the model B is open type. same to ball bearing, 28-35 copper coils .
Wear-resistance, anti-overheating and over 100000 hours lifespa

-Safety: low temperatue rise less than 30K.
- Large Air delivery:the suction power can be arrival at 1200(m3/h)
- Wide voltage option: Performance keep the same voltage form 160 to 270V and frequeny from 45Hz to 60Hz.- Environment-friendly: less energy consuption (on 50% o normal motor) and less copper wires used on BLDC motors.
- Low loss high efficiency: motor efficiency at around 70%, saving energy 50% on high speed and 80-90% on low speed.

Range hood Description 4
a1.)2 pcs round Charcoal filters would be recirculated ones.
a2.)The best charcoal fitlers supplier for range hood in China
a3.)The cleaning of the carbon filters should be based on the instruction manual of the rang hood.
Range hood quality control
1)Our products range hood have achieved CE approval
2)Every product range hood will be tested in the factory line before packed
3)Sample of gas range hood can be offered for you inspection
4)Carton packaging, built-in batten, ensure products in good transportation to your port
Range hood certificate
Range hood have CE certificate,SASO,COC,CCC,CB,can be optional.

Range hood Packing & shipping
1)sample of electric water heater can be prepared in 1 week
2)20'GP/20'GP/40'HQ goods can able to prepared in 25days

Model	Range hood Dismension
	Body Size	Packing Size
HCC-43	900×460×670	955*725*500
HCC-35	900*760*290	955*725*500
HCC-26	900*760*290	955*725*500
HCC-34	900*760*290	955*725*500
HCC-23	900*760*290	955*725*500

Our Service
1.1 year warranty for finish products
2.The motor have 5 years warranty.
3.1%-2%Spare Parts based on the order
4.OEM & ODM are welcome
5.CkD anfd SKD are available.
6.tried orders are available
7.sample of range hood can be supplied in 7days
During the warrnty years once there is some spares parts needed, we will send the spare parts of the range hood to you by air.
Company Information
Our company has equipped with hundreds of advanced production equipment and a number of modern high-tech production lines. We have an independent technology research and development center, a testing center and a laboratory. Our company has metal stamping, molding, spraying and electronics workshops and strictly controls product quality.
Adhering to the business principle of mutual benefits, we have built up a good reputation among our customers due to our perfect services, quality products and competitive prices.
FAQ:
1. What is your main product line is made?
We mainly produce Built-in Stove (stainless & glass), Built-in Ceramic Stove, Built-in Induction Stove, Range Hood, gas heater,gas water heater,electric water heater
2.Your factory or trading company?
We are a factory, we provide OEM&ODM services.
3.What is your main market?
Our main market is Middle East, South America, Europe, Russia, Africa and Some of regional.
4.You have the ability to do independent research and development?
Our engineering department has 10 people, we have the research and development capabilities. We also collect regularly each customer feedback, product improvement and new product development. We also hold monthly new product launches.
5.If I have a question I would like advice on how to contact you?
You can SNS platform or directly through major inquiry and send e-mail to consult us.
6.What will you provide services?
If you do not mind, you can tell us the following information, you are factories, wholesalers, purchasing, dealers, consumers or do engineering, design, or home. We can provide a detailed explanation to you. You will also patiently answered every question. We have established a customer complaint side, if you are not satisfied with our service, you can directly tell us via e-mail or telephone. We answer all questions for you. Thank you
