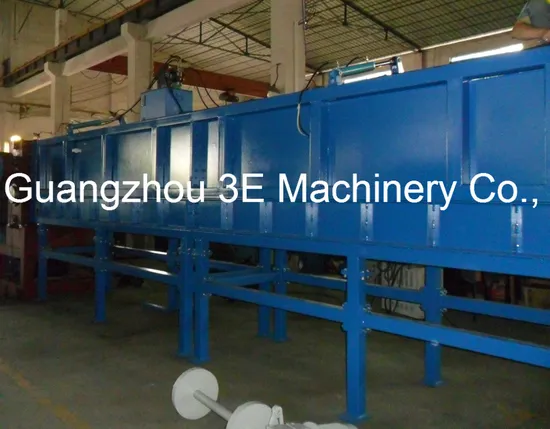

Horizontal Pipe Shredder/PE/Pet Pipe Shredder/PVC Pipe Shredder/HDPE Pipe Shredder/Wtph48 Series

Product Description

3E MACHINERY's The WTPH Series horizontal pipe shredder utilizes a hydraulic ram which feeds plastic pipe horizontally onto a single shaft shredder rotor. It is able to process very long pipes, and can take a very wide diameter pipe or multiple smaller pipes.
The size of the machine required for each project depends on the initial size of the material, capacity and the final particle size desired.
Application
WTPH series horizontal pipe shredder is specifically designed for processing long and thick walled plastic pipe. The shredder can be adjusted to suit various pipe diameters.
Specification
Features Rotor: Various rotor configurations available for processing a wide range of materials. Blades are made from hardened DC53 steel, the blades can be turned 4 times before changing. High performance rotor- The rotor is our standard rotor, suitable for processing a wide range of materials at high speed. Materials include plastics, wood, paper, fibre, cable, etc;
Hard material rotor- The rotor is designed specifically for processing hard materials such as ABC, PC, Nylon, etc. The blade holders are sub-set deeper into the shaft to reduce the impact on the blades and shaft;
Film rotor- The rotor is designed specifically for processing films. Sub-set block blades in the shaft prevent film from wrapping around the rotor and hardox surface on the rotor protects the shaft against abrasion from sand and dirt. Gearbox: Water cooled gearbox guards against overloading. Hardened teeth on the reducer. Shock Absorbe: Absorbs vibrations caused by the shredding of the material. This protects the machine and its various parts from damage. RAM: The hydraulic ram pushes material against the rotor. Bearing Seat: Protective bearing covers to avoid foreign contamination entering the bearing housing. Grease points to release oil at intervals to increase service life. Screen: Various screen sizes. Hydraulic Station: The ram pressure and timing can be adjusted to suit different materials. From WT40 series and above the machine can be fitted with wind cooled two-speed pump.
Company profile
3E GROUP is an integrated company specialized in developing, manufacturing, distributing and providing recycling machinery solutions. Our main entity " Guangzhou 3E Machinery CO. Ltd" founded in 2003, has currently become focusing on "Shredding" and "Recycling industry" modern enterprise.
Technology is the core-competitiveness of 3E Group, we are active in the recycling market and keep cooperating with well-known enterprises in Europe and the USA. Meanwhile, 3E Group keeps on improving and innovating, so far, we awarded 18utility model patents and 3 invention patents.
"Efficient Economical & Environmental" is the traditional idea of 3E Group. With its own intellectual property and solid technological team, our products have been already sold to over 90 regions and countries which include the USA, Europe, Australia, Southeast Asia, Latin America, and Middle East.
Advanced production and testing equipments
3E MACHINERY equipped with advanced processing and testing equipments, in order to ensure the quality of the products. And strictly control the quality of each parts, efforts to provide the best quality products to our clients.
Certification
3E MACHINERY was awarded 18utility model patents and 3 invention patents.
Our service
1.Pre-sale support
3E Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
On-site inspection.
2. After-sale service
3E's skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a 3E technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
3E holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
3E provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Regular return visit.
