Commercial Security Manual Sliding Folding Shutter Door/Transparent Folding Door

Product Description

Commercial security manual sliding folding shutter door General Description
Starking shutter manufactuere limited's security Polycarbonate sliding side folding closures are designed and widely used for enclosed retails and public environments. For example: shopping malls, airport shops, superstores, counter top, railway stations, museums, schools, and public buildings. In fact, wherever people and space need to be separated by a simple, secure screen system, our Polycarbonate sliding side folding shutter is a good choice.No matter it's straight opening or curved opening, we can make our doors to be perfectly matched. Furthermore, It will be a good choice if there is not enough headroom on the top. Applicationscommercial shopfronts commercial storefronts showrooms partition areas shopping center/ shopping mall and more
Key features low headroom required & No floor track required easy to install low maintenance made-to-measure, no matter it's straight opening or curved opening. up to 35 meters width High Security Excellent visibility

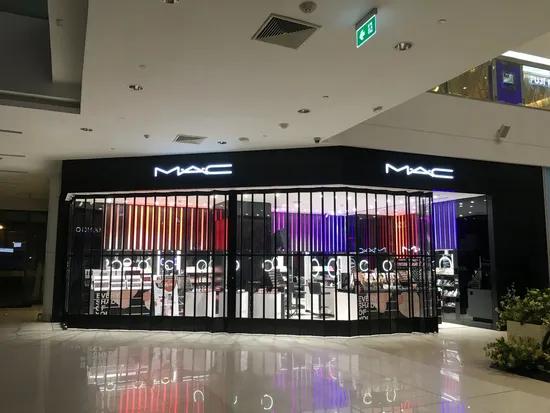

Project photos
Production photosTechnical Specifications
OPERATION Manually operated ONLY, the doors can be either single or bi-parting in operation, stacking to one side or two sides as required depending on side room clearances.DOOR PANEL OPTIONS

Polycarbonate	2.0-3.0mm thickness polycarbonate panels provide remarkable impact-resistance reinforced with aluminum fixing profiles
Perforated Aluminum	2.0-3.0mm thickness aluminum sheeting which provides approximately 50% ventilation with 3mm diameter micro-perforated holes, reinforced with aluminum fixing profiles
Solid Aluminum	2.0-3.0mm thickness solid plain aluminum sheeting which provides high privacy together with security, reinforced with aluminum fixing profiles
Panel width options	160mm, 200mm, 250mm, 275mm, 300mm.

OPERATING SYSTEM Our overhead track system is made of 40*40 mm aluminum extrusion profile. Single and double trolley rollers fitted with ball bearings are used and glide in an overhead track. The fitted tracks may have a radius of no less than 600mm to suit curved applications.
MAXIMUM SIZES Our Folding Closures can be manufactured to a maximum height of 4,500mm and can span 35,000mm width opening.
LOCKING The leading posts will be provided with a lock and 2 key cylinders which can be operated from both sides. Floor mounted sockets with dust caps are included.
FINISH Our standard finish is matt natural anodized aluminum.
Powder coating to ANY stand RAL color is available with additional cost
NOTE: Some special finishes may extend delivery time.
STACKING POCKET SIZES Normally the pocket width is 10% of the total width, kindly contact us for a specific width according to the panel and opening design.
Get in touch with us to know more our products and a free quote.
Certification
FAQ
What is the delivery time? A: 20 days for the standard colors and 30 days for the customized. Also it depends on the specifications and quantity each order. Shipment time depends on the location of our customers.
What is your payment items? A: Normally we accept 30% for deposit by T/T and the balance would be arranged before delivery. If you have any other suggestion, please contact with us.
Can we place one or two sets for trial? A: Yes of course, this is the better way of quality check. Also if you don't required one whole set, we have small sample in stock as well, it is free of charge, you just need to handle with the freight. It is a good way to show the sincerity for both of us.
How can I know the price exactly? A: The price is based on your specific requirements, it is better to provide as much as possible information such as color, size, quantity, market location, sales patterns, all of these would be of help us to quote the exact price.
Can I order components instead of the full set of door? A: Yes, as a factory we welcome business clients purchasing components of the door, such as panels, hardware's, motors, etc., to maximize the advantage of our mutual parties.
