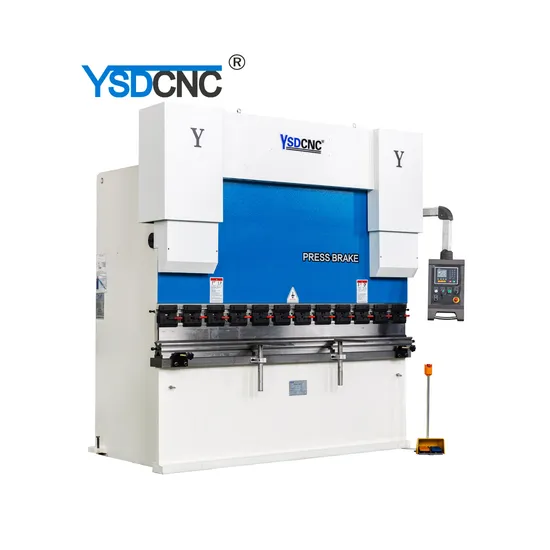

Wc67K 100t 200t 160t 400t Estun E21 Hydraulic Steel Sheet Metal Plate Panel CNC Bending -Machine Bender Plegadoras Press Brake

Product Description

1. Whole welded machine structure
2. E21 for X axis and Y axis control
3. Single/ Cylinder bending program
4. Work-piece counting function
5. Bending retraction function
6. Backgauge with ball screw and Manual R axis Products Description Features
WC67K NC hydraulic press brake machine with E21 has integrated hydraulic control system, which is compact and reduces piping connections, increasing system reliability and ease of maintenance. The machine is synchronised with twisted axes and has two synchronised pendulum arms at both ends of the ram, so that the movement of the ram is always parallel to the working table and has a high resistance to deflection during operation. The lower limit stroke of the cylinder is positioned by a mechanical gear block, so that the continuous working bending angle does not drift. The backstop and ram stroke can be manually fine-tuned and the E21 system has a digital display. The slider adopts the upper drive, the speed adjustment range is large, the work is stable and reliable. Equipped with compensation function, high bending accuracy. Details Images Fast clamps Extremely accurate clamping, positioning extremely accurate clamping, positioning
Laser Protection The DSP laser protection with 3 modes comprehensively protects the personal safety of the operators and maintains
the high level of the productivity of the YSDCNC press brake.
Special punch and die WILA Hydraulic Clamping System WILA has focused on the R&D of the hydraulic clamping systems and supporting tools of press brake machine for
many years, and its quality and service are trustworthy.
Safety Light Curtain The light curtain, YSDCNC chooses is from the well-known brands, with perfect performance to offer a highly effective
solution for both operator safety and machine productivity.
Sheet Follower The YSDCNC press brake with sheet follower for bending long and thin sheets. It places on the front of the press brake
at the height of the bending line. Robotic Arm Press brakes abound, virtually every metal fabrication shop has one or more, but brakes still remain one of the most
labor intensive machine tools in the fabrication process. Every fabricator understands the benefits achieved by running
a press brake"lights out" 24/7 at top speeds, which can only be accomplished with automation and robots. Browse our
offering of advanced Robotic Bending Automation technology that may be the answer to the efficiency improvements
you're looking for. Specification

Model	Nominal Force	Worktable Length	Poles Distance	Throat Depth	Slider Travel	Max Opening height	Power	Dimension
		(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	L*W*H(mm)
40T/2200	400	2200	1875	230	100	320	5.5	2200*1200*1910
40T/2500	400	2500	1875	230	100	320	5.5	2500*1200*1910
50T/2500	500	2500	1875	230	100	320	5.5	2500*1210*2000
63T/2500	630	2500	2020	250	100	320	5.5	2500*1300*2210
63T/3200	360	3200	2575	250	100	320	5.5	3200*1300*2210
80T/2500	800	2500	2020	300	100	320	7.5	2500*1400*2300
80T/3200	800	3200	2590	320	100	350	7.5	3200*1500*2300
80T/4000	800	4000	3050	320	100	350	7.5	4000*1500*2400
100T/2500	1000	2500	2020	320	120	320	7.5	2500*1600*2400
100T/3200	1000	3200	2600	320	120	370	7.5	3200*1600*2600
100T/4000	1000	4000	3050	320	120	370	7.5	4000*1600*2700
125T/3200	1250	3200	2600	320	120	370	7.5	3200*1600*2600
125T/4000	1250	4000	3050	320	120	370	7.5	4000*1600*2700
160T/3200	1600	3200	2600	320	200	460	11	3200*1700*2700
160T/4000	1600	4000	3000	320	200	460	11	4000*1700*2800
160T/5000	1600	5000	4000	320	200	460	11	5000*1900*3100
160T/6000	1600	6000	4940	320	200	460	11	6000*1900*3200
200T/3200	2000	3200	2600	320	200	460	11	3200*1950*2800
200T/4000	2000	4000	3000	320	200	460	11	4000*1950*2800
200T/5000	2000	5000	4000	320	200	460	11	5000*1950*3000
200T/6000	2000	6000	5000	320	200	460	11	6000*1950*3300
250T/3200	2500	3200	2500	400	250	590	18.5	3200*2000*3200
250T/4000	2500	4000	3000	400	250	590	18.5	4000*2000*3400
250T/5000	2500	5000	4000	400	250	590	18.5	5000*2000*3400
250T/6000	2500	6000	5000	400	250	590	18.5	6000*2000*3400
300T/3200	3000	3200	2530	400	250	590	22	3200*2000*3450
300T/4000	3000	4000	3470	400	250	590	22	4000*2000*3450
300T/5000	3000	5000	4000	400	250	590	22	5000*2000*3450
300T/6000	3000	6000	5000	400	250	590	22	6000*2000*3450
400T/4000	4000	4000	3000	400	250	590	30	4000*2180*3400
400T/5000	4000	5000	4000	400	250	590	30	5000*2180*3500
400T/6000	4000	6000	5000	400	250	590	30	6000*2180*3800
500T/5000	5000	5000	4000	400	250	590	45	5000*3500*3700
500T/6000	5000	6000	5000	400	320	590	45	6000*3500*3700
600T/4000	6000	4000	3000	400	320	590	55	4000*4500*3700
600T/6000	6000	6000	5000	400	320	590	55	6000*4500*3700
800T/6000	8000	6000	5000	400	320	590	55	6000*4500*6000

Our Service 1:The machine provides 36-month warranty and free online support and service from engineers. 2: Provide online technical support and service for life, even after the warranty period, the engineer team can always
provide you with online service at no additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according
to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the machine
itself-basic manual for the machine in English. We are a 7-year member of ******, and we support third-party guarantee transactions of ****** credit insurance
transactions, which can better protect your financial security.
The company provides a variety of transaction methods: EXW, FOB, CIF, DDU, DDP and other education methods
support customs declaration, export, transportation and delivery to the door and other one-stop services. You can trade through TT, wire transfer, transfer, paypel, letter of credit, ****** credit order and other transaction methods. We can deliver to your forwarding warehouse, or directly to your door, and deliver the goods to your hands.We cooperate
with well-known international shipping companies such as COSCO Shipping, and we can also be responsible for the
customs clearance of your goods, delivery of goods to your door, etc.And we provide free shipping insurance. If there is
any damage during transportation, our insurance company will settle the claim for you, and we will send you free shipping.
(If you have any questions, please contact us as soon as possible, and we will guide you how to operate? We are your
most trusted partner, we are your eyes and hands.) Our Company Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38 years of industry experience. We specialize in four main product lines: air duct
production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders for energy recovery. With over
300 employees, including 30 sales engineers and 35 service engineers, our factory spans 40 acres and is equipped with 3 floor-type
boring and milling machines, 6 gantry planers, 10 radial drilling machines, and 25 CNC machining centers. In total, we have over 200
large and small-scale equipment. With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality products and services. Our commitment to excellence has resulted in many satisfied customers who are eager to become our agents. FAQ Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit
in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.
