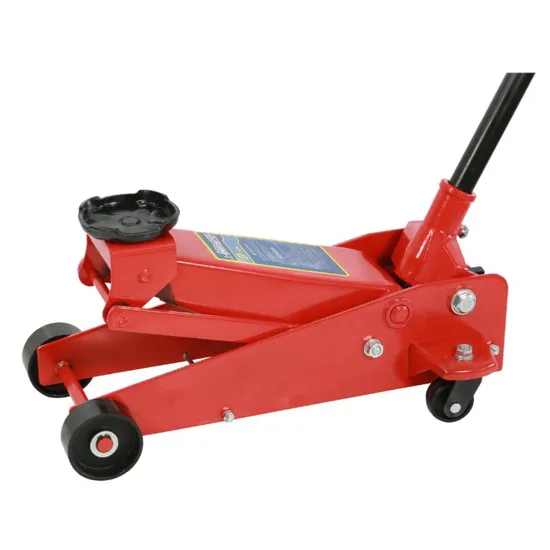

3 Ton Floor Jack CE Certification Car Repair Lifting Tool 32 Kg

Product Description

Model	Lifting Wt	Min.H	Lifting.H	Adjust H.	Max.H	N.W	Package	Measurement	Qty/Ctn	G.W	20' Container
	(ton)	(mm)	(mm)	(mm)	(mm)	(kg)		(cm)	(pcs)	(kg)	(pcs)
STFL320	3	140	320	/	460	22	Color Box	61x37.5x19	1	23	620
STFL321	3	135	360	/	495	28	Color Box	68x38x20	1	29	550
STFL322	3	135	360	/	495	30	Color Box	68x38x20	1	31	550
STFL323	3	135	360	/	495	32	Color Box	68x38x20	1	33	550
STFL324	3	135	360	/	495	34	Color Box	68x38x20	1	35	550
STFL325	3	135	385	/	520	36	Color Box	77x39x21	1	37	430
STFL321GS/CE	2.25	135	360	/	495	29.5	Color Box	67x37.5x20	1	30.5	550
STFL324GS/CE	3	135	360	/	495	35	Color Box	68x38x20	1	36	550
STFL330L	3	75	425	/	500	32.5	Color Box	78x37.5x17.5	1	34	500

Notes: 1.When the vehicle is jacked up,do not open the engine,because the engine vibrates and the weels of cars turned easy to cause the jack slide down. 2.Before operating the jack, find a fixed position. Operating Instruction 1.Before operating,estimate the weight of the load,Do not overload the jack beyond its rated load. 2.Select point of action according to the gravitational center place the jack on the hard ground if necessary,place a hard plank under the jack so as to avoid tottering or falling during operation. 3.Before operating the jacks,first,insert the notched end of the handle.into the release valve.Turn the operating handle clock wise until release value is closed.Do not over tighten the value. 4.Insert operating handle into the socket and the ram is steadily raised by the up and down movement of the handle and the load is raised.the ram will stop rising when the required height is reached. 5.Lower the ram by turning the release valve.Counterclockwise with the notched end slacken it slowly when a load is applied,or accidents can occur. 6.When more than one jack is used at the same time it is important to operate the different jacks at an equal speed with equal load.Otherwise,there is danger of falling the entire fixture. 7.Violent shocks must be avoided during the operation. 8.User must operate the jack correctly according to operating instruction:If the jacks has some quality problems,it can not be operated.
