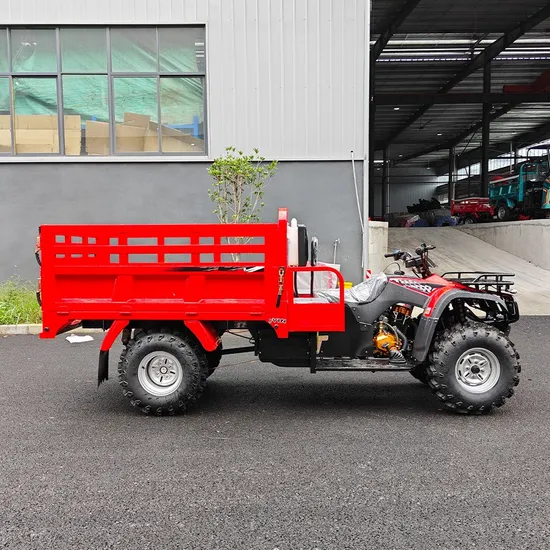

The Benefits of Four-Wheeled Motorcycles for Motorcyclist and Environment: a Comprehensive Analysis
| US$898.00 | 10 Pieces (MOQ) |
Basic Info.
Power
Gasoline
Body Type
Open
Displacement
111-150CC
Wheel Distance
1040mm
Class
a
Loading Capacity
500-800kgs
Manufacturer
Since 2005
Cargo Box
1600mm*1250mm
Ignition System
Cdi
Tires
4.50-12
Driving Type
Motorized
Tricycle Wheel Distance
1040mm
Loading Type
Flat Plate Type
Weight
300kgs
Style
Minisize
Transport Package
SKD/CKD
Specification
CCC
Trademark
DUNYA OR OEM BRAND
Origin
Chongqing
HS Code
8711204000
Production Capacity
60, 000 Sets/Year
Product Description
Detailed PhotosProduct Parameters
| BODY | Application | Cargo Transport |
| Design Max Speed | ≥60 km/h | |
| Loading Capacity | 500-700 kg | |
| Gross Weight | 380 kg | |
| Dimension(L*W*H) | 3250x1250x1450mm | |
| Cargo size(L*W*H) | 1700*1250*1450mm | |
| Battery | 9A | |
| Front Wheel Brake | Drum | |
| CHASIS ( FRAME) | Keel (mm) | 40*60 strong chasis |
| Track | 870 mm | |
| Wheel Base | 1100 mm | |
| Ground Clearance | 160mm | |
| Tire | 4.5-12 | |
| SUSPENSION & SHOCK | Brake Mode | Front&Back wheels, Drum |
| Brake Operation Mode(F/R) | Drum | |
| Front suspension | Double Front shock absorber | |
| Rear suspension | Leaf spring 5(3+2) pieces | |
| Transmission Type | Shaft Drive | |
| Rear axle | Car Strength Driving rear axle | |
| ENGINE | Engine Type | Single cylinder,4-stroke,camshaft downward, Loncin, 150cc aircooling(optional) |
| Cool Type | Air Cooler | |
| Bore Stroke | 62×49.5mm | |
| Fuel Tank Capacity | 12 L(optional) | |
| Fuel Type | Gasoline | |
| Compression Ratio | 9.0:1 | |
| Min.Fuel Consumption | <=354g kw.h | |
| Rated Power&Rotating Speed | 8.2kw/8500r/min | |
| Max.Torgue/Rotating Speed | 10.0N.m/7500r/min | |
| Lowest No-Load Speed Stability | 1500±150rpm | |
| Clutch Method | Manual-Hand | |
| Power | 8.5 kw | |
| Ignition System | C.D.I. | |
| Apply to | Motor tricycle | |
| Starter | Kick/Electric | |
| Transmission | 5 Forward &1 Reserse Gears | |
| PACKING | Loading Capacity (CKD) | 54 Units in 40"HQ |
| Delivery Time (from loading port) | 20-25 Days after receiving advance payment |
Company Profile
FAQ Q: Are you a manufacturer or a trader?
A: We are a manufacturer, focusing on the R&D, production and sales of tricycles.
Q: What is your MOQ?
A: Our MOQ will be one 40HQ container. Depending on the model, the number of tricycles will range from 20 to 50.
Q: Can I buy a sample tricycle first?
A: Sorry, we cannot provide one or several sample tricycles.
Q: Can you customize tricycles?
A: Yes. We have a strong R&D team and can provide in-depth customization according to the actual needs of customers.
