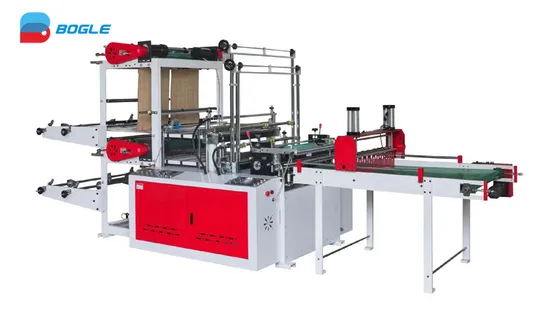

Computer Control Double Decks Four Lines Bottom Sealing Cold Cutting HDPE LDPE Poly PE Polythene Flat Open End Plastic Bag Making Machine

Product Description

Description:
This 2 Layers 4 Lines Heat Sealing Cold Cutting Polythene Nylon Shopping Bottom Sealing Plastic Bag Making Machine is specializing in manufacturing bottom sealing plastic bags (also called plastic flat bags), in the machine,it adopts high quality channel steel as machine structure, very solid and working stably, the whole machine is drove by main motor, with inverter for controlling the motor, power saved and protect the electricity circuit. The sealing blade use high quality copper material, cutting blade adopts good quality SK-45 high speed steel, working life longer, in the machine, adopts leading famous brand temperature controller, heating rapidly, high sensitivity and durability, temperature detect accurately, and use high performance heater, high temperature resistance, evenly heated, high insulation performance, low cost, small size, easy installation, high power, high thermal efficiency, high temperature, long life etc. In the bottom sealing plastic bag making machine, uses step motor or servo motor for controlling film feeding, it is suitable for making non printing bags four or six lines same time.
Technical Parameters:

Model	BG-800	BG-900	BG-1000
Max Bag Width	700mm*2 330mm*4	800mm*2 380mm*6	900mm*2 430mm*4
Max Bag Length	1500mm	1500mm	1500mm
Max Capacity	400-450pcs/min	400-450pcs/min	400-450pcs/min
Main Motor	1.5KW	1.5KW	2.2KW
Total Power	5-6KW
Power	1 Phase 220V 50HZ (or customized according to clients)
Machine Weight	950KGS	1000KGS	1050KGS
Dimension (L*W*H)	3.5*1.25*1.8m	3.6*1.35*1.8m	3.7*1.45*1.8m

Machine Photos:
Details of Machine:
Unwinder:
2 layers 4 unwinding stations with manual brake
8# U steel, very strong

Unwinder:
Each unwinding unit drove by feeder roller unit seperately
Photocell sensor for unwinding detect

Bag Sealing & Cutting Part:
2 layers structure
4 Lines working

Sealing Blade:
High grade copper sealing blade
Rotary design, one side for flat bag, other side for T-shirt bag
Air tube:
Blowing air function, for provide cooling for the sealing line, avoid stretch
Photocell Sensor:
Tracking printed label when making printed bag, ensure cutting accuracy
High speed alloy cutting blade
Beside it, there are air tubes blow air for help long bags feed out betterTouch screen:
Both Chinese and English 2 languages, easy switch
Bag length setting
Auto counter
Batch number setting, auto alarm/stop
Electric Part:
220V 50HZ 1P or customized according to requirement
Conveyor belt
Other Recommend Machines
Our Factory:
Our Customer Feedback:
Certificate:
Package & Loading:
FAQ:
1.:Are you manufacturer or trading company ?
We are manufacture, specializing in plastic package machinery filed more than 15 years, we have own export sale team.
2. Where is your factory?
Our factory is located in Ruian,Zhejiang Province, China, about 1hour far away from Shanghai or Guangzhou, after you arrive Wenzhou Airport or Ruian Railway Station, we will drive and pick you up there, welcome to visit our factory.
3 What's the deliery time?
Generally, the delivery time is about 30-40 days, if you need machine urgently, we also could shorten the delivery time.
4.:What's the quality warranty period?
one year quality guarantee, within the period, freely provide replacement at the buyer delivery cost, life long after sale service and technical support,
5:What's the package method?
The machine will be cleaned and packed with stretch plastic film to avoid dust.
6.Does your factory provide installation and trainning service?
We could appoint engineer go to the buyer's factory to do installation and trainning at the buyer's cost.
7:What are your terms of payment?
We accept T/T and L/C.
