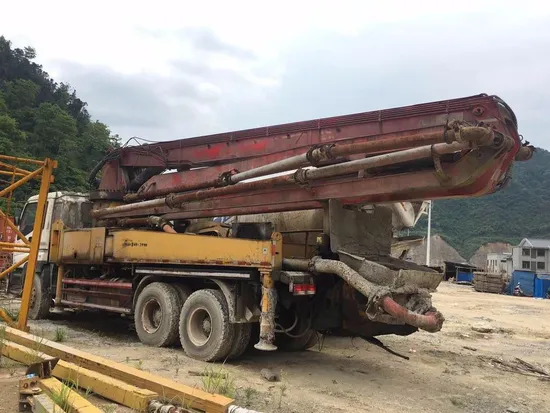

62m Heavy Duty Concrete Pump Truck Sym5462thbfs 620c-10A with Top Brand Chassis
Basic Info.
Model NO.
SYM5462THBFS 620C-10A
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Red
Max. Vertical Conveying Distance
62m
Weight
44000 Kg
Dimension(L*W*H)
14580mm*2550mm*4000mm
Section Numbers
6
Maximum Theorical Pressure on Concrete
32 MPa
Transport Package
Nude
Specification
11990*2500*3900 mm
Trademark
RICHMCHN
Origin
China
Production Capacity
100unit/Year
Packaging & Delivery
Package Size
1230.00cm * 270.00cm * 420.00cm
Package Gross Weight
44500.000kg
Product Description
Products DescriptionSanny pump truck on Benz 62m 5 axles
A smart boom, a large boost
Highly reliable
Strong pumping
Extremely economical
Ultimate user experience
Product Paramenters
| Boom | Maximum vertical reach | 62m |
| | Maximum horizontal reach | 51m |
| | Maximum depth reach | 36.6m |
| | Minimum unfolding height | 15.2m |
| | Section numbers | 6 |
| | Boom type | Z |
| | Pipeline diameter | 125mm |
| Pump | Maximum theorical output | 180 m3/h |
| | Maximum theorical pressure on concrete | 32 Mpa |
| | Concrete cylinders (diam. × stroke) | 260mm x 1900mm |
| | Hydraulic circuit | Open |
| Chassis | Chassis brand | Benz |
