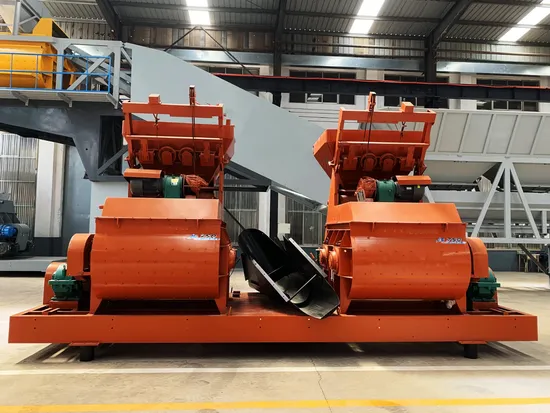

Hot Sales Js Series 500L to 3000L Twin Shaft Concrete Mixer

Hot Sales Js Series 500L to 3000L Twin Shaft Concrete Mixer

US$11,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Concrete Mixer
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Welded Molding Machine
Structure
Steel Structure
Productivity
60m²/h
Feeding Height
3800mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Discharge Way
Hydraulic
Mixing Power
37kw
Reclaiming Capacity
500-3000L
Mixing Star* Mixing Blade (Qty)
2*4
Transport Package
Nude
Specification
standard size
Trademark
XINTU
Origin
China
HS Code
847431
Production Capacity
3000sets/Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
5000.000kg

Product Description

Brief Introduction of Twin Shaft Concrete Mixer:
This JS series twin shaft concrete mixer is compulsory type with main components of feeding system(skip hopper), mixing bowl, discharging system, water supply system and electrical system. It is widely used for small or medium scale concrete batching plant to produce commodity concrete.
Features & Benefits of Twin Shaft Concrete Mixer: 1.The high hardness Mn-steel makes the liner and blade have long working time.
2.With the new designed mixing system, it can work more steady and efficiency.
3. Easy for operating & maintaining, saving more cost.
4. Discharge height can us special designed.
parameters of bucket type twin shaft Concrete Mixer:
Parameter Model JS500 JS750 JS1000 JS1500
Item
Discharge volume 500L 750L 1000L 1500L
Charging volume 800L 1200L 1600L 2400L
Theoretical capacity ≥25m3 ≥35m3 ≥50m3 ≥75m3
Aggregate sizes ≤60/80mm ≤60/80m ≤60/80mm ≤60/80mm
Working circle 60s 60s 60s 60s
Mixing blade Speed 35r/min 30.5r/min 25.5r/min 23r/min
Quantity 2×7 2×8 2×8 2×9
Mixing motor Model Y180M-4 Y200L-4 Y225S-4 Y225M-4
Power 18.5 kw 30 kw 37 kw 45 kw
Lifting motor Model YEZ132S-4 YEZ132M-4 YEZ160L-4 YZE180M-4
Power 5.5 kw 7.5 kw 11 kw 18.5 kw
Pump motor Model 50DWB20-8A 65DWB35-5 KQW65-100 KQW65-100
Power 0.75 kw 1.1 kw 3 kw 3 kw
Weight 1500kg 6150kg 9880kg 10960kg
Dimensions (L x W x H) 3030x2300x2680 mm 4550x2250x2450 mm 4640x2250x2250 mm 5058x2250x2440 mm

This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.
