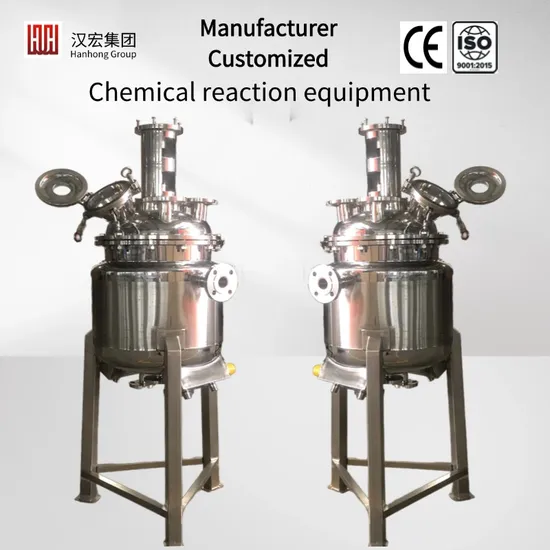

Enamel Reaction Kettle
| US$5,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
24T010T010T
Type
Reaction Kettle
Material
Stainless Steel
Capacity
501-1000L
Structure
Filling Tube
Pressure
Negative
Agitator Model
Ribbon Agitator
Tower Reactor Type
Packed Tower Reactor
Heating
Oil Circulation Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Whether to Support Customization
Yes
Product Material
304-316 Other Special Materials Please Contact Cus
Anticorrosion
Lining Anti-Corrosion PTFE
Lined with Anti-Stick
Support
Transport Package
According to The Actual Customization
Specification
According to the actual customization
Trademark
hanhon
Origin
Yuanzhou Town, Huizhou City, Guangdong Province
Product Description
Note: The above prices are all deposits. The specific product prices are composed of many aspects. Please refer to the official quotation issued by our staff. Just te Product Descriptionll us your needs and we can provide free product matching design solutions.
| Reactor Detailed Specifications | |||||||||||||||||
model | kw | capacity | Material | Heating method | Heat transfer pipe | Condenser | Condensation Area | Vacuum Pump | Lined with anti-stick | Lined with anti-corrosion PTFE | Barrel size and height | r/min | mm thickness(mm) | Discharge port size | Heating power | Thermal oil | |
| HH-50 | 0.55kw | 72L | Materials can be selected and heating methods can be added as needed. | Add heating pipes as needed | Match the condenser according to product requirements | 2 | 2.2-7.5KW | support | ø400*650 | 35-60 | 500 | 2.5 | 1 | 6kw | 40L | ||
| HH-100 | 0.55kw | 140L | 2 | ø500*800 | 36-60 | 500 | 2.5 | 1 | 6kw | 50L | |||||||
| HH-200 | 0.75kw | 240L | 2 | ø600*950 | 36-60 | 800 | 2.5 | 1.5 | 12kw | 85L | |||||||
| HH-300 | 1.5kw | 380L | 3 | ø700*1100 | 36-60 | 1200 | 2.5 | 1.5 | 12kw | 100L | |||||||
| HH-500 | 2.2kw | 670L | 3 | ø900*1200 | 36-60 | 1500 | 3 | 1.5 | 18kw | 150L | |||||||
| HH-1 | 3kw | 1350L | 5 | ø1100*1600 | 36-60 | 1500 | 3 | 2 | 18kw | 250L | |||||||
| HH-1.5 | 4kw | 1750L | 5 | ø1200*1750 | 36-60 | 2000 | 3 | 2 | 24kw | 300L | |||||||
| HH-2 | 4kw | 2500L | 6 | ø1400*1850 | 36-60 | 2500 | 4 | 2 | 24kw | 380L | |||||||
| HH-3 | 4kw | 3600L | 8 | ø1500*2300 | 36-60 | 3500 | 4 | 2 | 36kw | 750L | |||||||
| HH-4 | 5.5kw | 4500L | 10 | ø1600*2550 | 36-60 | 4000 | 5 | 2.5 | 36kw | 900L | |||||||
| HH-5 | 7.5kw | 6000L | 16 | ø1800*2650 | 36-60 | 5000 | 5 | 2.5 | 48kw | 1100L | |||||||
| HH-8 | ø2200*2900 | ||||||||||||||||
| Notice:The product appearance can be made into a mirror,Please give us your requirements or specific parameters, and we will give you a plan and price. If you have any questions, please contact our staff and we will provide the best service. | |||||||||||||||||
