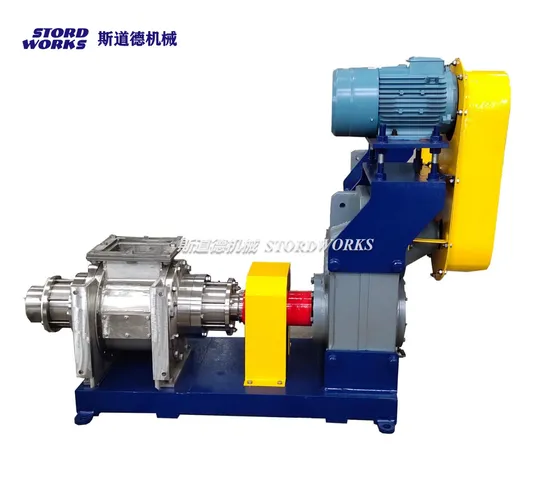

Stordworks Carbon Steel Lamella Pump for Pre-Broken Animal by-Product

Product Description

If you need to move a liquid containing large particles from one point to another-even for distances of up to 200 meters-lamella pump is the ideal choice. These simple, extremely robust devices are widely accepted as the "gold standard" for pumping meat, fish and poultry materials.
This type of positive displacement sliding vane pump is specifically designed to transport fluids containing large particles, such as pre-crushed animal by-products, pet food or fish, with fluid content as low as 20%. It is very suitable for filling all types of cookware and other processing equipment in closed systems to ensure good hygiene and limit odor problems.
Although these pumps have high capacity, they use very little energy compared to traditional delivery systems. There are four different versions and three different sizes, equipped with side or top feed. They use the same standardized components to achieve maximum reliability and effective spare parts backup. Working Principle
The Lamella pump transports raw materials with high viscosity index, such as the offal and broken bones of pigs and cattle, or the whole carcasses of poultry and fish, except feathers. The delivery is completed in the pump, and the blades rotate to produce a positive offset. This Lamella pump system allows large amounts of material to be transported over long distances with only one drive. At the end of the process, a valve installed in the extension of the pipe cleans the system to avoid material accumulation between treatment intervals.
Features
·Due to its unique impeller blade design, the superior performance of Lamella pump is possible-the blades rotate with an eccentric cam, providing high pumping capacity in a small size.
·The Lamella pump can transport up to 168 cubic meters (5,933 cubic feet) of raw materials per hour and is suitable for batch or continuous refining operations.
·Options include a variable frequency motor for precise flow control and an automatic reverse function to help clear blockages.
·Compact size and multiple configuration options make it easy to adapt to new and existing systems. Perform simple and quick maintenance on all worn parts for easy maintenance.
·Use conveyors, feeding systems, metering and material bins, etc. to customize the complete system according to your needs. It is also available as a pump, motor and drive system kit, or only as a pump.
Advantages
·Very small footprint-can be installed almost anywhere
·You can use the same device in many different places where the settings are handled
·Due to the completely enclosed material transfer, it is easy to maintain good hygiene standards
·Extremely reliable-can handle large input materials well, even metal contamination in the input stream
Product Parameters

	Type/Unit	LP25	LP35	LP45
conveying capacity	m3/h	48	105	270
Max. rotating speed	rpm	80	70	60
Lift	m	10	25	75
Torque	Nm	4000	7000	15000
Weight	kg	390	550	915
Max. size of solid	mm	65	85	135
Pipe connection	mm	150	250	350

Lamella pump can be delivered with pump housing in carbon steel or stainless steel in all sizes to suit individual requirements.
Lamella pump is manufactured with replaceable wear parts in special steel. The lamella pump has only four moving parts and it can be equipped with mechanical sealing or packing sealing.
Depending on the material properties, the lamella pump can be driven by either an gear motor or a hydraulic motor.
Packaging & Shipping
1.Carefully check the quantity and quality of equipment before packing.
2.Good packed by plastic wrap.
3.Iron Frame, Suitable for land transport and sea freight.
4.Fittings and spare parts are packed in wooden pallet.
5.Add labels and shipping mark.
Fields of application
Lamella pump is known for its high quality and durability, even in the harshest and most difficult environments. The pump is suitable for pumping fish and cuts and animal by-products.
Since the pump is installed in fish processing, animal slaughter and pet food industries and slaughterhouses around the world, it has proven its suitability for multiple purposes. The pump has many different versions, so it can perfectly meet your specific production needs.
The unique structure of Lamella pump allows it to pump large and hard particles such as bone, tissue and fat. This makes it possible to pump uneven products over long distances. One of several advantages is to keep the product in a closed piping system, thereby reducing hygiene issues and odors.
Due to the compact design of the pump and its ability to pump in a closed piping system, Lamella pump replaces other systems such as screw conveyors, screw pumps, pressure tanks and conveyor belts. In addition, the pump has lower energy and maintenance costs, as well as higher capacity. Lamella pump does not require any manual operation, thereby reducing the risk of injury.
Certifications
Our company has successively obtained the national standard pressure vessel manufacturing license, the pressure vessel design certificate, the ISO9001 certificate, the ISO14001 certificate, and obtained the ASME,CE,DNV, TR-620 certificates successively by cooperating with many international professional testing institutions such as BV, TUV, DNV, SGS.
