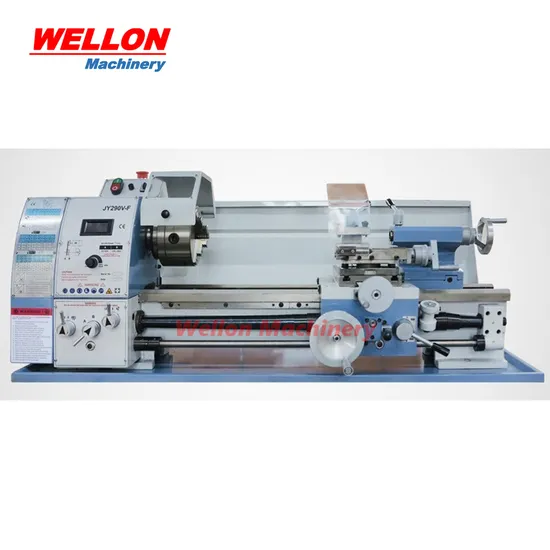

Precision Bench Lathe (Universal Bench Lathe Machine JY280V-F)
| US$1,000.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JY280V-F
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Spindle Bore
26mm
Transport Package
Ply Woodcase
Specification
CE ISO9001 ROHS
Trademark
WELLON
Origin
Tengzhou, China
HS Code
8458190000
Production Capacity
100sets/Month
Product Description
Products Description:V-way bed is hardened and precision ground.
Super width bed way gets more capacity.
Independent leadscrew and feed shaft.
Power cross feed function.
Automatic feed and threading are fully interlocked.
T-slotted cross slide.
Right & left hand threads cutting is available.
Tailstock can be offset for turning tapers.
Tolerance test certificate, test flow chart included.
| Model | JY280V-F |
| Distance between centers | 700mm |
| Swing over bed | 280mm |
| Swing over cross slide | 165mm |
| Taper of spindle bore | MT4 |
| Spindle bore | 26mm |
| Number of spindle speeds | 6/variable speed |
| Range of spindle speeds | 125-2000/50-2000rpm |
| Range of cross feeds | 0.02 -0.28mm /r |
| Range of longitudinal feeds | 0.07 -0.40mm /r |
| Range of inch threads | 8-56T.P.I |
| Range of metric threads | 0.2 -3.5mm |
| Top slide travel | 50mm |
| Cross slide travel | 140mm |
| Tailstock quill travel | 80mm |
| Taper of tailstock quill | MT2 |
| Motor | 0.75/1.1KW |
| Packing size | 1400 × 700 × 680mm |
| Net weight | 210kg / 230kg |
Standard Accessories
| Name | QTY |
| 3-jaw chuck | 1pc |
| Dead centers | 2pcs |
| Splash guard | 1pc |
| Chip tray | 1pc |
| Toolbox &tools | 1pc |
| Optional Accessories | |
| Name | QTY |
| Rolling Center | 1pc |
| Stand | 1pc |
| Cutter | 1pc |
| Back plate | 1pc |
| Four-Jaw Chuck | 1pc |
| Follow Rest | 1pc |
| Steady Rest | 1pc |
| Face Plate | 1pc |
