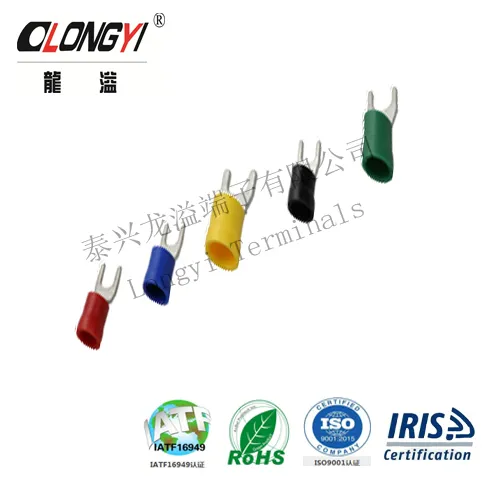

The Best Terminal Connection Terminal, Copper, Tinned Surface, Suitable for Different Equipment, Product Specifications From Small to Large.

Product Description

Insulated terminals 1, cable lugs are suitable for the connection of copper conductors (section 1.25-8mm2) in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
6, Wire specification/rated: According customer required
7, Attribute: Pre-insulated, blade shape Our Advantages
Office building and workshop introduction
Insulation terminal certificates
Terminal application domain
Packing method of insulation terminals
Introduction to our insulated terminals

Product Description
The company has more than 95% of the full automatic production lines, nissan 200 tons, production capacity continues to adjust and expand, to meet the challenge of the market at any time.
Through the European CE safety certification, American UL safety certification, the company has a SC Japan JIS standard, the German DIN standards, AWG American standards, etc.
Companies always adhere to: quality first, service first, from raw materials into the factory inspection, process inspection to every working procedure, outbound packaging cengcengbaguan .
Company has own copper pipe, copper strip, copper platoon of raw material processing factory, with strong competitive advantage price on equal quality to every guest get the maximum benefits. Insulation terminal product dimensions

PART NO	ITEM NO	WIRE RANGE		DIMENSIONS
		AWG/MCM	mm 2	ΦE	ΦD	Φd	W	B	L	COLOR
LY0020-1001	VF1.25-3YS	22-16	0.25-1.65	3.7	4.0	1.7	5.7	10.4	21.8	RED
LY0020-1002	VF1.25-3YW			3.7	4.0	1.7	6.2	10.4	21.8
LY0020-1003	VF1.25-3YSA			3.2	4.0	1.7	5.7	10.4	21.8
LY0020-1004	VF1.25-4YS			4.3	4.0	1.7	6.4	10.4	21.8
LY0020-1005	VF1.25-4YW			4.3	4.0	1.7	7.2	10.4	21.8
LY0020-1006	VF1.25-5Y			5.3	4.0	1.7	8.0	10.4	21.8
LY0020-1007	VF1.25-6Y			6.7	4.0	1.7	10.7	10.4	21.8
LY0020-1008	VF2-3YS	16-14	1.04-2.63	3.7	4.6	2.3	5.7	10.4	21.8	BLUE
LY0020-1009	VF2-3YSA			3.2	4.6	2.3	5.7	10.4	21.8
LY0020-1010	VF2-3YW			3.7	4.6	2.3	6.2	10.4	21.8
LY0020-1011	VF2-4YS			4.3	4.6	2.3	6.4	10.4	21.8
LY0020-1012	VF2-4YW			4.3	4.6	2.3	7.2	10.4	21.8
LY0020-1013	VF2-5Y			5.3	4.6	2.3	8.0	10.4	21.8
LY0020-1014	VF2-6Y			6.7	4.6	2.3	10.7	10.4	21.8
LY0020-1015	VF3.5-4Y	12-10	2.63-4.60	4.3	5.6	3.2	8.0	13.3	24.8	YELLOW
LY0020-1016	VF3.5-5Y			5.3	5.6	3.2	8.0	13.3	24.8
LY0020-1017	VF5.5-3Y	12-10	4.60-6.64	3.7	6.6	3.5	8.2	13.6	26.5	YELLOW
LY0020-1018	VF5.5-4Y			4.3	6.6	3.5	8.2	13.6	26.5
LY0020-1019	VF5.5-5Y			5.3	6.6	3.5	9.0	13.6	26.5
LY0020-1020	VF5.5-6Y			6.4	6.6	3.5	12.0	13.6	31.2
LY0020-1021	VF8-5Y	8	6.64-10.52	5.3	8.3	4.5	9.0	17.5	29.5	RED
LY0020-1022	VF8-6Y			6.7	8.3	4.5	12.0	17.5	32.0
