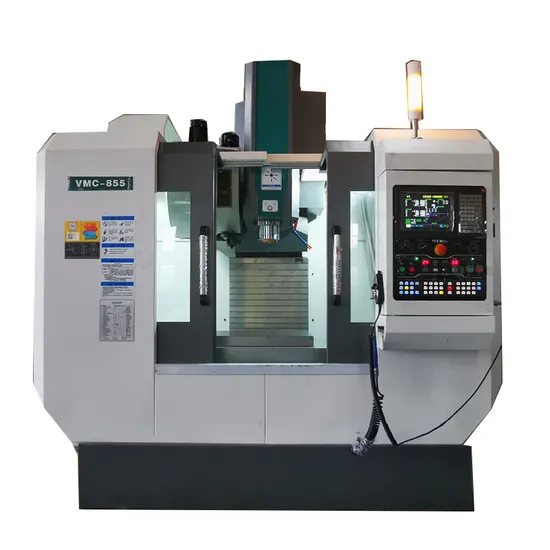

3 Axis 4 Axis 5 Axis Vmc CNC Milling Machine CNC Vertical Machining Center Vmc855
| US$23,950.00 | 1 set (MOQ) |
Basic Info.
Model NO.
vmc850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Name
CNC Vertical Machining Center
Table Travel
800/550/550mm
Table Size
1000X550mm
T Slot
5/18/90
Table Load
500kg
Spindle Taper
Bt40
Spindle Speed
8000rpm
Spindle Motor
7.5kw
Tool Magazine Capacity
24PCS
X Axis Feed
30m/Min
Y Axis Feed
30m/Min
Z Axis Feed
24m/Min
Spindle Nose to Table Surface
150-700mm
Cuttiing Feed X/Y/Z
10000mm/Min
Positioning Accuracy Repeat Positioning
0.003mm
Transport Package
Wooden Box
Trademark
UNI-TECH
Origin
China
HS Code
8457101000
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
320.00cm * 228.00cm * 255.00cm
Package Gross Weight
5000.000kg
Product Description
China 3 axis 4 axis 5 axis VMC CNC Milling Machine CNC Vertical Machining Center Vmc855 SPECIFICATIONSCNC VERTICAL MACHINING CENTER Specification
| unit | VMC855 | |
| Table size | mm | 1000x550 |
| T slot | no | 5 |
| Centre distance | mm | 90 |
| T-Width | mm | 18 |
| Max. load of worktable | kg | 500 |
| Longitudinal travel | mm | 800 |
| Cross travel | mm | 550 |
| Vertical travel | mm | 550 |
| spindle nose to table surface | mm | 150-700 |
| Spindle taper | BT40 | |
| Speed Range | rpm | 40-8000 |
| Spindle output torque (Max.) | N.M | 35.8/70 |
| spindle motor power | kw | 11/15 |
| cuttiing feed X/Y/Z | mm / min | 1-10000 |
| rapid feed X/Y/Z | m / min | 30/30/24 |
| X/Y/Z lead screw size | mm | 40x16 |
| tool magazine capacity | piece | 24 |
| tool magazine type | arm type | |
| Max. tool weight | kg | 8 |
| Max. Tool dia. (full/empty) | 78/120 | |
| Max. Tool length | mm | 300 |
| Tool changing time (tool to tool/cut to cut) | s | 1.55/5 |
| positioning accuracy | mm | ±0.005/300 JIS |
| repeat positioning accuracy | mm | ±0.003 JIS |
| overall dimensions(LxWxH) | mm | 2550*3000*2800 |
| Machine weight | kg | 5000 |
Detailed Photos
CNC VERTICAL MACHINING CENTER PHOTOS
ACCESSORIES
CNC MACHINING CENTER Standard configuration:
Taiwan spindle BT40-10000RPM (highest speed 8000rpm),
X axis Hiwin/Rexroth 35mm roller linear guide way,
Y,Z axes Hiwin/Rexroth 45mm roller linear guide ways
Taiwan Hiwin ball screws
Taiwan 24pcs arm type tool magazine
spindle blowing chip removal system,
spindle front seal
auto centralized lubrication system,
water cooling, air cooling
electrical hand wheel,
working lamp,
alarm light
safety door lock
Optional:
1. chain type chip removal system with flushing :
Screw type chip removal system with flushing:
2. Renishaw tool setting probe TS27R:
3.BT40-150 direct connection spindle 10000rpm(highest speed 8000rpm):
oil cooler: (China brand)
oil cooler: (imported)
(If you choose direct connection spindle, we suggest you equip with oil cooling)
4.BT40-150 12000RPM direct connection spindle with oil cooling: (highest speed 10000rpm)
IF YOU ARE INTERESTED IN VERTICAL CNC MACHINING CENTER, PLS CONTACT US
