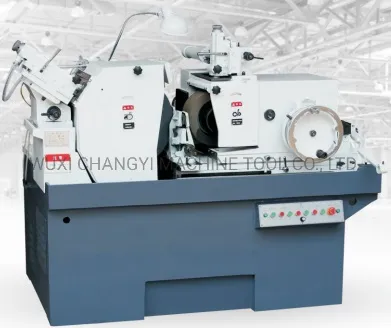

Mk1080 CNC Cylindrical Through and Cutting Centerless Grinding Machinery
| US$24,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MK1080
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Centerless Grinding
Precision
High Precision
Certification
CE, ISO 9001, SGS
Condition
New
Gringding Dia(mm)
5~80mm
Grinding Length(mm)
Thru-Feed 180mm
Grinding Length
Plunge Feed 220mm
Roundness
1.5μm
Cylindricity
2.5μm
Transport Package
Waterproof Film Wrapped Around, Wooden Case
Specification
1940*1630*1500mm
Trademark
CHANGYI
Origin
Wuxi, China
HS Code
8460241900
Production Capacity
100 Sets Per Year
Product Description
| MK1080B | |||
| Machine cuting mechanism is equepped with imported reducer and ball screw combined with imported servo motor. | |||
| Mixed dresser configuration imported linear guide and ball screw with imported servo motor,repairable products accordingto customer's different demand,circular arc,linear multiple steps,program programmed to automatically fix the size of the finishing cut at the same time institutions can compensation at the same time,the finishing times can be set freely and can be combined with automatic loading device to realize unmanned operation,king kong pen trimming precision can reach 0.001mm,trimming of high precision,stable performance. | |||
| CNC system selection of man-machine interface control,simple operation,humanization | |||
| The layout of he machine adopts the single-side movement mode of regulating wheel frame | |||
| Sand wheel shaft adopts owerhang structure | |||
| Guide wheels shaft adopts double support rolling bearing structure,with high rotary accuracy and good cutting rigidity. | |||
| Regulating wheel drive adopts frequency conversion motor and frequency converter to realize stepless speed regulation. | |||
| The cooling system is equipped with magnetic separator. | |||
| Gringding dia(mm) | Thru-feed | 5~80mm | |
| Plunge feed | 5~80mm | ||
| Grinding length(mm) | Thru-feed | 180mm | |
| Plunge feed | 220mm | ||
| Reg.wheel swivel angle(°) | In vertical plane | -2° ~ +5° | |
| In horizontal plane | 0° ~+3° | ||
| Height from centerline of gri.wheel®.wheel to workrest(mm) | 210mm | ||
| Machining accuracy | Roundness(μm) | 1.5μm | |
| Cylindricity(μm) | 2.5μm | ||
| Gri.wheel spec(mm) | PSA500*150*305mm | ||
| Reg.wheel spec(mm) | PSA300*150*127mm | ||
| Gri.wheel speed(r/min) | 1300r/min | ||
| Reg.wheel speed(r/min) | 5-250r/min | ||
| Adjusting reg.wheel | 300 | ||
| Two gri.wheel distance(mm) | Max volumn | 510mm | |
| Min volumn | 305mm | ||
| Total power of machine(kw) | 19.2kw | ||
| Machine weight (kg) | 3650kg | ||
| Overall dimensions(mm) | 1940*1630*1500mm | ||
