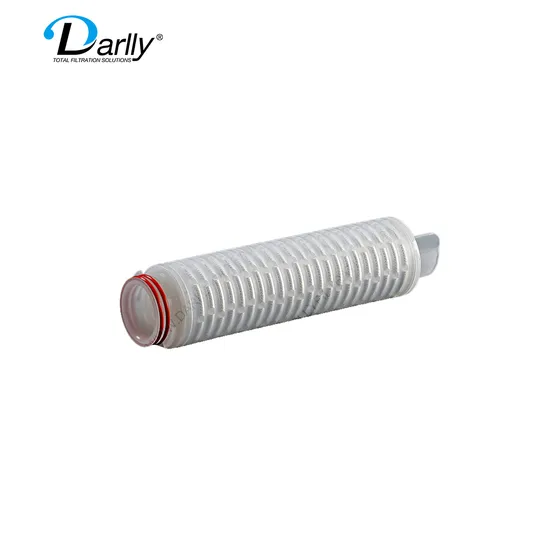

0.45um Absolute Pes Membrane Pleated Filter Cartridge for Sterile Filtration

Product Description

FAE series polyether sulfone (PES) membrane filter is designed to comply with all FDA requirements for food & beverage industry. The filter media is asymmetric PES membrane which exhibits low protein- binding characteristics. FAE filter is an excellent choice as a final filter prior to bottling or storage of beverages and liquid food products.

Applications
· Brewing
· Wine
· Soft Drinks
· Bottled Water
· Dairy
· Distilled Spirits
· Food and Ingredients
Features
· Durable PES and PP components
· Excellent chemical compatibility
· Repeated sterilization capability for economical operation
· 100% integrity tested during manufacture
Quality & Food Contact Compliance
· Material of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
· Materials used to produce filter media and hardware meets the specifications for biological safety per USP Calss VI-121C for plastics
· Filter cartridges passed European Commission Directives (EU10/2011)
· Halal Certified
Integrity Test

Micron	Bubble Point≥(Water)	Diffusion Flow≤(10"Ø69mm)
0.1μm	4.8Bar	25ml/min@4.475Bar
0.22μm	3.2Bar	25ml/min@2.76Bar
0.45μm	2.1Bar	25ml/min@1.70Bar
0.65μm	1.32Bar	12ml/min@1.1Bar

Product Specifications

Dimensions	Outer Diameter	2.7''(69mm)
	Length	5",10'', 20'', 30'', 40''
Materials of Construction	Filter media	PES
	Support Layer	Polypropylene (PP)
	Cage/Core/End caps	Polypropylene (PP)
	Connection Adapter	SS Insert, PSU Insert
	Seal Material	Silicone, EPDM, Viton
Performance	Removal Rating:	0.1um, 0.22um, 0.45um, 0.65um, 1.2um
	Maximum Operating Temperature	80°C
	Max. Operating DP	4Bar@21°C
		2.4Bar@80°C
	Filtration Area	0.65 m² / 10" Filter cartridges
	Sanitization	Hot water 100x20 minutes cycles at 85-90ºC
