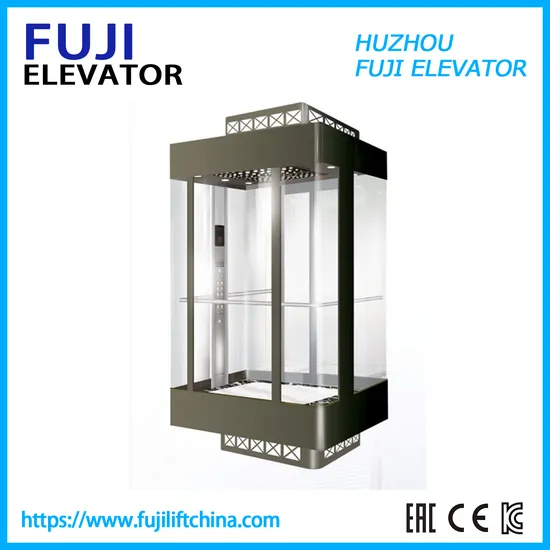

FUJI Factory Manufacturer Panoramic Lift Glass Elevator with Sightseeing Elevator Home Elevator Villa Passenger Lift Passenger Elevator Lift China Lift
| US$8,000.00-12,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
FUJI-G
Type
without Machine Room
Speed
1.00 - 2.00m/s
Capacity
500-1000kg
Persons
450-1600kgs
Shape
Square and Semi-Clrcle
Number of Sides
Three
Driving Type
AC Elevator
Control Mode
Collective Selective Control
Elevator Door
Center Opening Door
Door Knife
Single
Production Time
Within 25-30 Days
HS
8428101090
Machine Room
with or Without
Transport Package
High Quality Export Wooden Case
Origin
China
HS Code
8428101090
Product Description
For passenger elevator Standard Decoration Optional(if you have other request,we can provide)
| It's wall | Hairline stainless steel |
| Ceiling | LED Fluorescent, according to the car design |
| Car bottom | PVC |
| Jamb material | The first layer of hairline, the remaining steel plate Spraying |
| Hall door | The first layer of hairline, the remaining steel plate Spraying |
Passenger Elevator Parameter
| Load capacity (Kg) | Rated Speed m/s | Car Size cw*cd(mm) | Door Opening Size ew*eh(mm) | Shaft Size hw*hd(mm) | Top floor height Th(mm) | Pit Depth (mm) |
| 450 | 1 | 1100×1100 | 800×2100 | 2050×1850 | 4500 | 1500 |
| 630 | 1 | 1400×1100 | 800×2100 | 2250×1900 | 4500 | 1500 |
| 1.5 | 4700 | 1600 | ||||
| 1.75 | ||||||
| 800 | 1 | 1400×1350 | 800×2100 | 2200×1950 | 4000 | 1500 |
| 1.5/ 1.75 | 4700 | 1600 | ||||
| 1000 | 1 | 1500×1550 | 900×2100 | 2350×2150 | 4000 | 1600 |
| 1.5/ 1.75 | 4700 | 1600 | ||||
| 1600 | 1 | 1800*2000 | 1100*2100 | 2900*2200 | 4350 | 1500 |
| 1.5/ 1.75 | 4500 | 1600 |
Small machine room or Machine roomless passenger elevator give you different options
Intellectial main control system
It gives first priority to effectiveness in vertical transport field.In order to fully optimize the service efficacy of the elevator system,FUJI elevator fulfills the intellectual managements such as multi-computer,modular and network control etc.Through fully computerized intellectual control system.It instantly feeds back the elevator running conditions.It provides the passengers with the most efficient gold-collar services.
New generation permanent magnet synchronous traction machine &Top advanced door operator system
Elevator Standard Functions
| No. | Description name | Description | No. | Description name | Description |
| 1 | Static electricity protection | Eliminate static electricity raised from running of steps. | 11 | Over-load protection | Protection against risk of motor continually over-load. |
| 2 | Emergency stop button | Push the emergency stop button to shop the escalator/moving walk against emergency raise. | 12 | Step sagging protection | Protection against risk of steps being breakage and sagging. |
| 3 | Skirting protection | Protection against risk of foreign bodies being jammed into clearance between steps and skirting. | 13 | Broken step chain protection | Protection against risk of steps being breakage or under elongation. |
| 4 | Handrail entry safety protection | Protection against risk of foreign bodies being jammed into handrail entry. | 14 | Comb teeth safety protection | Protection against risk of foreign bodies being trapped at the point where the step enter the comb. |
| 5 | Main drive chains safety protection | Protection against risk of drive chains being breakage or undue elongation. | 15 | Handrail speed and broken handrail monitor | It detects the handrail speed and monitors the broken handrail. |
| 6 | Over-speed protection | Protection against risk of speed being over 20% of rated speed. | 16 | Skirting anti-clamp device | It sets protection brush in the skirting on both sides of the step. |
| 7 | Under-speed protection | Protection against risk of speed less than over 80% of rated speed. | 17 | Step missing detection | It detects the step missing in the stairway. |
| 8 | Un-intentional reversal protection | Protection against risk of unintentional reversal protection. | 18 | The brake opens the monitor switch | It monitors whether the brake opens or not in during the escalator running. |
| 9 | Floor-plate monitor switch | When the pit cover plate opens,it cuts off safety circuit and stops the escalator safety switch. | 19 | Handwheel and handwheel protection cover open safety | During the use of handwheel,when open the handwheel and the handwheel protection cover,the safety switch will cut the safety circuit against escalator running. |
| 10 | Short circuit protection | Protection against risk of short circuit. | 20 | Lack of phase,error phase protection | Protection against risk of phase failure. |
