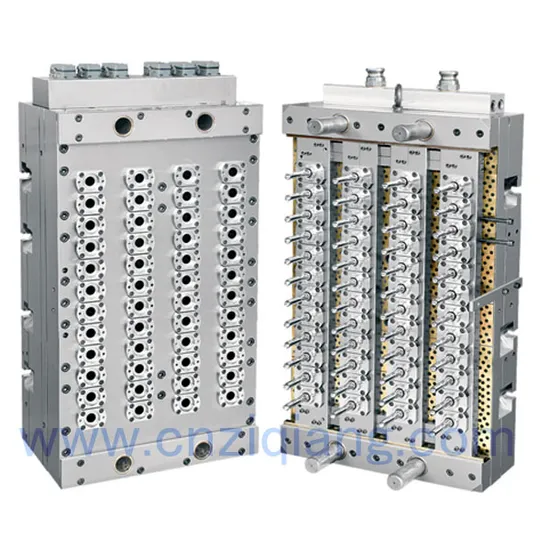

Plastic Pet Preform Injection Mold Hot Runner (Shut-Off Nozzle) (48 Cavities)

Product Description

Plastic Pet Preform Injection Mold Hot Runner
Our company can make 12-48 CAV. PET Preform mould with hot runner system. Using point to point temperature control, it is easier to adjust every cavity of the temperature of the mould. The quality of the preform is the same like Canada quality. The design of the preform also different that make your capacity increase.
Plastic Pet Preform Injection Mold Hot Runner-HOT RUNNER SYSTEM
A). Hot runner employs PID controlling system which features automatic compensation and automatic protection, and contributes to the prolongation of lifetime of electric heater;
B). The precision of temperature controlling falling within 1 degree which ensures to avoid plastic in the hot runner being burnt, resulting in a yield of up to 99% and more;
C). Ultra nozzles are designed to be maintenance-friendly. Nozzle tip inserts, heaters, tip insulator, and thermocouples are easily accessible an can be replaced while the hot runner is mounted in the machine, which minimizes down-time and reduces maintenance cost.
Core and cavity in mould are top materials. All the parts are processed on CNC machine tool with high precision, especially the plate, the tolerance is less than 0.05mm. And all parts are treated by heat treatment strictly. To ensure their intension and life time good enough. After the treatment, the intensive neck ring and core hardness can be HRC48~52, the hardness of cavity can be HRC44-48.
Main feature:
1.Mold cavity from 1 up to 144.
2.Electric control system with simulating stretch testing improve yield rate.
3.Adopt world advanced dipole taper localization technique, each cavity self-clamp independently, ensure mould concentricity.
4.The material of mould die core and die cavity are made of Sweden special mould steel.
5.International standard screw neck, imported nitrided steel with high hardness is of long usage.
6.Advanced hot runner design and even heating temperature make sure the high quality of plastic products.
7.Valve gated type without tail reduces labor force.
8.At least 2 million guarantee.
