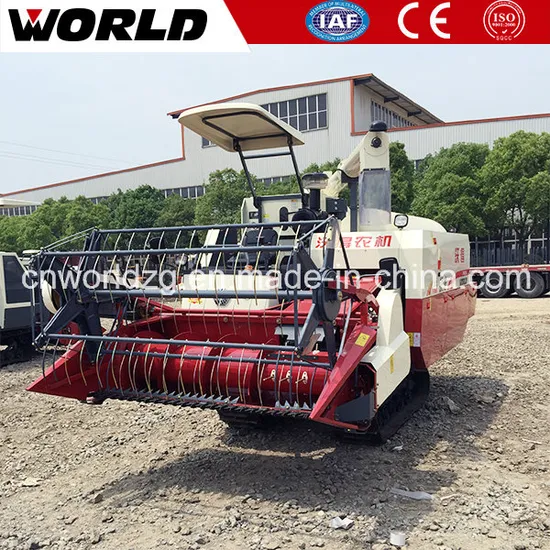

China Made Mini Combine Harvester for Sale
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4LZ-4.0E
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Combine Harvester
Crawler Type Harvester for Rice and Wheat
Applications
Rice or Wheat Harvesting
Feeding Capacity
5kg/S
Cutting Width
2800mm or 3200mm
Threshing Cylinder
540X1330mm
Efficiency
0.5-1.0ha/H
Transport Package
in Container
Specification
ISO
Trademark
WORLD
Origin
China
HS Code
84295100
Production Capacity
5000 PCS/Year
Product Description
China Made Mini Combine Harvester for SaleMain Features:
1.Equipped with turbocharged engine 64.7kw with stronger power and lower fuel consumption.
2.ZKB65 hydraulic gearbox with 40C HST ensures harvester working more smoothly.
3.Rubber track 450x90x51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min. Ground clearance reaches 300mm, harvester can work in deep mud fields.
Specifications:
| Feeding Capacity (kg/s) | 4 | ||
| Work Dimension L*W*H (mm) | 4900*2890*2700 | ||
| Weight (kg) | 2900 | ||
| Cabin/Sun shade | Sun shade | ||
| Engine Part | Model No. | Changchai 4L88 | |
| Power/Speed (hp/rpm) | 88/2700 | ||
| Fuel | Light Diesel Oil | ||
| Fuel Capacity (L) | 130 | ||
| Fuel Consumption(kg/hm2) | 12~30 | ||
| Start | Motor Starter | ||
| Gear Box | ZKB65 made by WORLD Factory. | ||
| HST | 40CC HST Imported from south Korea. | ||
| Walking Part | Rubber Track | Length of Ground Contact (mm) | 1700 |
| Center Distance (mm) | 1160 | ||
| Size(mm) | 450*90*51 | ||
| Average Contact Pressure (kpa) | ≤20Kpa | ||
| Min. Ground Clearance (mm) | 300 | ||
| Gear Shifts | Variable Sun-transmission 3 Shifts | ||
| Walk Speed (Km/Hour) | Low:0~1.85 Medium:0~6.5 High:0~9 | ||
| Theoretical Work Speed (Km/Hour) | 0.9-6.5 | ||
| Harvesting Unit | Grain Lifter | Divider | |
| Working Width (mm) | 2200 | ||
| Reel Bat | Dia. × Length (mm) | ∮900×2028 | |
| Gearshift Method | Constant Speed | ||
| Adjusting Means | Hydraulic | ||
| Stubble Height[Lift] (mm) | 25cm or above | ||
| Threshing &Harvesting Unit | Threshing Mode | Axial Flow Type, Bullet Rotor | |
| Threshing Rotor | Type of Threshing | Beat Bar | |
| Dia. ×Length (mm) | ∮620*2050 | ||
| Rotating Speed(rpm) | 662/732 | ||
| Fan | Diameter | ∮400 | |
| Separating Type | Vibrating Sieves +Air Blow | ||
| Area of Sieves (Lowe and Upper Sieves) (m2) | 1.645 | ||
