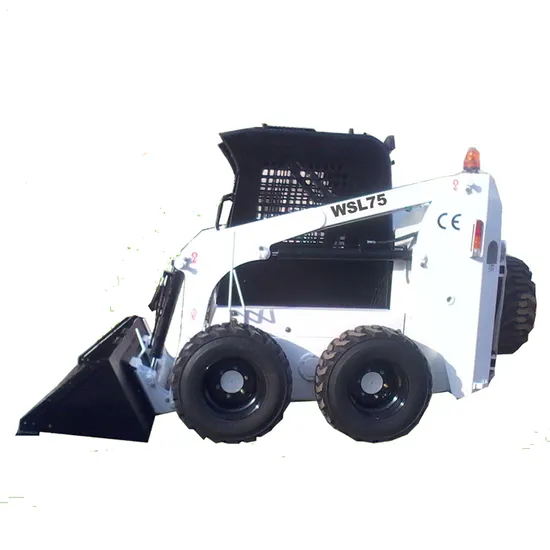

Wheel Skid Steer Loader 750kg (WSL75)
Basic Info.
Model NO.
WSL75
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Name
Wheel Skid Steer Loader 750kg (Wsl75)
Tipping Load(Kg)
Tipping Load(Kg)
Rated Operating Capacity(Kg)
750
Bucket Capacity(M3)
0.36-0.45
Operationg Weight(Kg)
3000
Max. Travel Speed(Km/H)
12
Hydraulic Pump Flow(L/Min)
62.5
Fuel Tank Capacity(L)
50
Tires
10.0-16.5
Overall Dimensions(mm)
3200X1740X2030
Transport Package
Seaworthy Packing
Specification
CE, SGS, ISO
Trademark
SHYTGER
Origin
Shanghai, China
HS Code
84295100
Production Capacity
3000units/Year
Product Description
Wheel Skid Steer Loader 750KG (WSL75)1. Product Features
(1)Compact structure, maneuverable suitable for narrow space operation
(2)Open cabin with mechanical control system
(3)Double accelerograph control
(4)Multi-function with a wide range of attachments
(5)Hydraulic brake
(6)Mechanical levelling system
2. Main Specifications:
| Specifications | |
| Model | WSL75 |
| Rated operating capacity(kg) | 750 |
| Tipping load(kg) | 1400 |
| Bucket capacity(m3) | 0.36-0.45 |
| Operationg weight(kg) | 3000 |
| Max. travel speed(km/h) | 12 |
| Hydraulic pump flow(L/min) | 62.5 |
| Fuel tank capacity(L) | 50 |
| Tires | 10.0-16.5 |
| Overall dimensions(mm) | 3200×1740×2030 |
| Dimensions | |
| Height at maximum extension(mm) | 3670 |
| Height to bucket hinge pin(mm) | 2900 |
| Width with bucket(mm) | 1740 |
| Track width(mm) | 1450 |
| Wheelbase(mm) | 991 |
| Ground clearance(mm) | 185 |
| Dump angle 40° | 40° |
| Dumping height(mm) | 2310 |
| Maximum reach(mm) | 710 |
| Engine | |
| Maker/Model | Mitsubishi S4S |
| Net power | 35.4kw/2250rpm |
| Type | 4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
| Displacement(L) | 3.059 |
| Standard | |
| Open-type operator cab | |
| Hydraulic control system | |
| Standard bucket | |
| Auxiliary hydraulic couplers | |
3. Quality certificate:
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
4. Optional:
(1)LOVOL PERKINS 1004-4L06 (56KW)
(2)DONGFENG CUMMINS 4BTA3.9-C100(74kw)
(3)AIR CONDITIONER
(4)ELECTRONIC CONTROL
(5)JOYSTICK
(6)QUICK HITCH
(7)FORK
(8)ROPS
5. Others:
(1)Packing: 2 units naked within 1 x 40HQ container
(2)Delivery time: 30 days
(3)Accidental benefits: Customers can purchase wearing parts according to the parts list we offered.
(4)Guarantee Period: Six Months
(5)Offer Validity: 30 days
