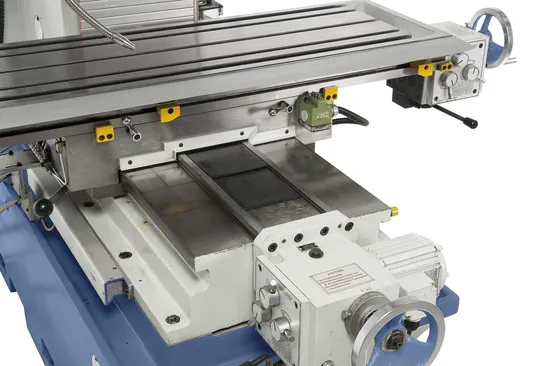

Heavy Duty Bed Type Drilling and Milling Machine
| US$5,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX5150
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Noe
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max.Vertical Milling Dia.
32mm
Max End Mill Width
125mm
Max. Drilling Dia.
50mm
Spindle Travel
180mm
Distance Spindle to Table
100-580mm
Distance Spindle to Column
400mm
Main Motor
1.5/2.4kw
up/Down Motor of Headstock
550W
N.W./G.W.
1900/2150kg
Overall Dimension
1800X1900X2300mm
Transport Package
Wooden Case, No Need Fumigation, Plastic Cover
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84592900
Production Capacity
300 Sets/Month
Product Description
Product DescriptionMulti-Function Horizontal Drilling and Milling Machine (ZX5150)
With rectangular table
With automatic spindle feed
With hardened table surface
CE, ISO9001
Main feature:
1. Rectangular table guide ways with high stability
2. Automatic spindle feed
3. Motorized lifting and lowering of head-stock
4. Headstock swivels ± 45°
5. Hardened and ground table surface
| Multi-Function Horizontal Drilling and Milling Machine SPECIFICATION | UNIT | XZ5150A | XZ5150 |
| Max.vertical milling dia. | mm | 32 | 32 |
| Max end mill width | mm | 125 | 125 |
| Max. drilling dia. | mm | 50 | 50 |
| Spindle taper | 7:24 ISO40 | 7:24 ISO40 | |
| Spindle travel | mm | 180 | 180 |
| Spindle speed range | r/min | 94-2256(16 steps) | 94-2256(16 steps) |
| Automatic Feed Series sleeve | mm/r | 0.1/0.15/0.3(3 steps) | 0.1/0.15/0.3(3 steps) |
| Distance spindle to table | mm | 100-580 | 100-600 |
| Distance spindle to column | mm | 400 | 400 |
| Swivel angle of headstock | 45° | 45° | |
| Up/down speeds of headstock | mm/min | 2000 | 2000 |
| Table size | mm | 1250×360 | 1220×360 |
| Table travel | mm | 600×360 | 600×360 |
| Table feeds range | mm/min | 22-555(8 steps)810(max.) | 18-555(8 steps)810(max.) |
| T-slot of table (no./width/distance) | mm | 3/18/80 | 3/14/95 |
| Main motor | kw | 1.5/2.4 | 1.5/2.4 |
| Motor of table power feed | w | 750 | 370 |
| Up/down motor of headstock | w | 550 | 550 |
| Coolant pump motor | w | 40 | 40 |
| N.W./G.W. | kg | 1900/2150 | 1760/2000 |
| Overall dimension | mm | 1800×1900×2300 | 1730×1730×2300 |
