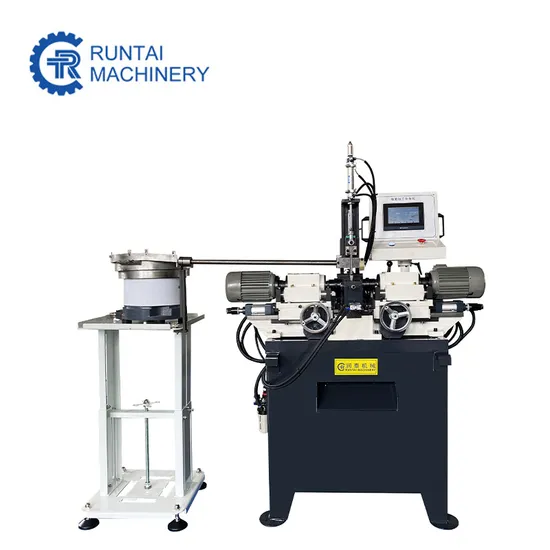

Rt-30fa Automatic Double-End Chamfering Machine for Short Material

Product Description

Specification:
Type: double head/double end/double side.
Function: chamfering/bevelling/deburring/edging etc.
Processing place: outside/inside/end face etc.
Processing metal: steel/stainless steel/aluminum/copper/brass/other ferrous metal/non-ferrous metal.
Material shape: round bar/round rod/round tube/round pipe/round tubing etc.
Operation: semi-automatic/automatic

Features:
The machine adopts manual nesting, automatic feeding, clamping, cutting feed, retracting, clamp loosening, discharging and automatic cycle;
The cutting feed of the machine is classified into fast feed and working feed, so as to adjust the cutting and chamfering speed, to complete the processing of the smooth surface;
The machine is applicable to the circular pipes and rods. The chamfering and finishing of the inside and outside corners of the end surface can be completed at a time quickly and accurately;
To ensure that the centerline of the cutter head for object processing is accurate and unchangeable, the cutter head of the clamping die is precisely designed to complete the object processing uniformly at a time;
Through the special design, the blade of the cutter head is standardized, and the clearance is adjusted, thus the operation is simple and quick.

Specifications:

Model	RT-30FA Pneumatic Type
Main Motor Power	0.75KW/1.1KW
Applicable Outer Diameter	Φ2-Φ30mm
Processing Length	10-80mm
Processing Precision	±0.1mm
Processing Speed	3-5 sec/piece
Applicable Material	Steel pipe, iron pipe, stainless steel pipe, aluminum pipe, copper pipe, plastic pipe, nylon pipe and round rod
Machine Outline Dimensions	1100x1100x1400mm

Products details: Automatic Feeding Vibration Plate Chamfer tubes
Company Details
Professional: 10 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc

Trade information:
FOB Shanghai, CIF your port
Payment Terms: T/T, L/C
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
Free Sample: No


Notes:
