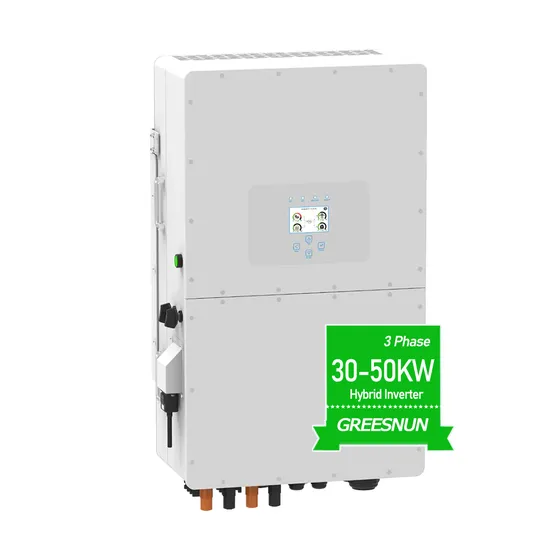

Deye High Voltage 3 Phase MPPT Hybrid Sun-50K-Sg01HP3-EU-Bm4 20kw 30kw 50kw Solar Hybrid Inverter
| US$3,799.00-4,199.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SUN-50K-SG01HP3-EU-BM4
Phase
Three
Output Power
>1000W
Certification
CE, SAA SGS Dve
Brand
Deye
Type
DC/AC Inverters
Power Source
Solar Power
Nature of Wave String
Sine Wave Inverter
Place of Origin
Ningbo, China
Model Numbe
50kw Hybrid Inveter
Output Voltage
3L/N/PE 220/380, 230/400VAC
MPPT Range (V)
150-850V
Battery Voltage Range (V)
160-800V
Output Frequency
50/60Hz
Output Type
Three Phase
Communication
WiFi/RS485/Can
Certificate
CE Ved SAA Us Certificate
Weight
80kg
Inverter Type
Hybrid Solar Power Inverter
Protection
IP65
Communication with BMS
RS485/Can
Battery Type
Lithium-Ion
Transport Package
Wooden Box
Specification
527*894*294mm
Trademark
Deye
Origin
China
HS Code
8504403090
Production Capacity
5000pieces/Month
Packaging & Delivery
Package Size
95.00cm * 60.00cm * 40.00cm
Package Gross Weight
80.000kg
Product Description
Product DescriptionProduct Parameters
| Model | SUN-20K-SG01HP3-EU | SUN-30K-SG01HP3-EU | SUN-40K-SG01HP3-EU | SUN-50K-SG01HP3-EU |
| Battery Input Data | ||||
| Battery Type | Lithium-ion | |||
| Battery Voltage Range (V) | 150~800V | |||
| Max. Charging Current (A) | 50A+50A | |||
| Max. Discharging Current (A) | 50A+50A | |||
| Number of battery input | 2 | |||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||
| PV String Input Data | ||||
| Max. DC Input Power (W) | 32500W | 39000W | 52000W | 65000W |
| Max. DC Input Voltage (V) | 1000V | |||
| Start-up Voltage (V) | 150V | |||
| MPPT Range (V) | 200V-850V | |||
| Full Load DC Voltage Range (V) | 450-850 | 360-850 | 360-850 | 450-850 |
| Rated DC Input Voltage (V) | 600 | |||
| PV Input Current (A) | 36A+36A | 36A+36A+36A | 36A+36A+36A+36A | |
| Max. PV ISC (A) | 55A+55A | 55A+55A+55A | 55A+55A+55A+55A | |
| No. of MPP Trackers | 2 | 3 | 4 | |
| No. of Strings per MPP Tracker | 2 | |||
| AC Output Data | ||||
| Rated AC Output and UPS Power (W) | 25000W | 3000W | 40000W | 50000W |
| Max. AC Output Power (W) | 27500W | 33000W | 44000W | 55000W |
| Peak Power (off grid) | 1.5 times of rated power, 10 S | |||
| AC Output Rated Current (A) | 38 | 45.6 | 60.8 | 75.8 |
| Max. AC Current (A) | 50 | 60 | 70 | 83.3 |
| Max. Continuous AC Passthrough (A) | 150A | |||
| Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac,230/400Vac | |||
| Grid Type | Three Phase | |||
| DC injection current (mA) | <0.5% 1n | |||
| Certifications and Standards | ||||
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | |||
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||
| General Data | ||||
| Operating Temperature Range (ºC) | -40~60ºC, >45ºC Derating | |||
| Cooling | Smart cooling | |||
| Noise (dB) | <45 dB | |||
| Communication with BMS | RS485; CAN | |||
| Weight (kg) | 80kg | |||
| Size (mm) | 560.5W×837H×319D | |||
| Protection Degree | IP65 | |||
| Installation Style | Wall-mounted | |||
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery,solar inverter and complete solar energy system for residential and C&I application. Having professional engineering team, Greensun Solar provide best design and customization of One-Stop Solar Solution. Greensun Solar was founded in 2004, headquartered in Hefei, Anhui China. Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management. We have comprehensive product range: solar panel, inverter, controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packaging & Shipping
| Professional Packing: Carton, Wooden Pallet and Wooden Box. | |
| By Express | TNT, DHL, FedDex, UPS available |
| By Air | Shenzhen/Shanghai or other Designated Airport |
| By Sea | Shenzhen, Shanghai, Ningbo or other Designated Port in China |
