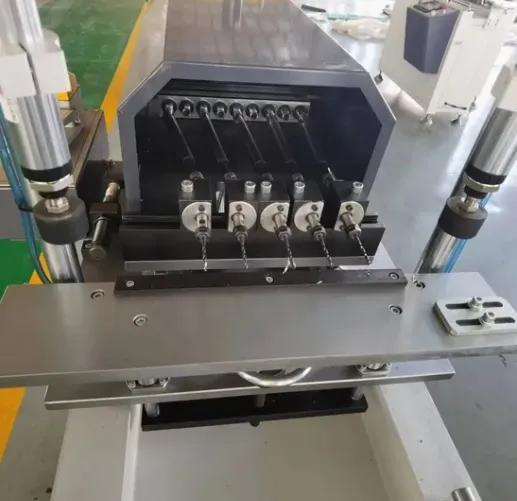

Intellihinge Aluminum Profile Drilling Machine for Efficient Hinge Manufacturing

Product Description

Aluminum Profiles for High-Efficiency Intelligent Hinge Drilling Machine

1,Customizable eight-hole model
2,Suitable for efficient drilling of hinge installation holes, support holes, and four-link holes for aluminum doors and windows (such as outward-opening windows, top-hung windows).
3,Can simultaneously process 10 holes on both sides with one clamping, achieving high processing efficiency. 4,Both drill heads can work independently or simultaneously. 5,Utilizes high-precision multi-axis drilling packages from Taiwan, with key rotating parts using precision imported bearings to ensure processing accuracy and service life. 6,The drill feed on the linear guide rail is driven back and forth by a cylinder, with a buffer at the front end for smooth feed and positioning. 7,The machine is equipped with an operating platform in front of the bed, with electrical control components mounted on the platform. After placing the workpiece on the worktable, the operator simply needs to follow the operation procedures and press the buttons for the machine to complete clamping, cutting, tool return, and release processes.

Input power supply:	380V/50Hz
Input power:	3.0kW
Working air pressure:	0.5~0.8MPa
Number of drill heads:	10
Processing width size:	300×2,000mm
Drilling diameter:	Ф1~7mm
Minimum hole spacing:	22mm
Maximum hole spacing:	380mm
Spindle speed:	1,400rpm
Dimensions:	3,100×1,200×960mm
Weight:	Approximately 750kg

Pre-Sale Service
Get in touch with us to find the perfect machine for your needs, at no cost to you.
Enjoy bespoke professional designs tailored to each customer's unique requirements, free of charge. After Sale Service Receive round-the-clock technical support via phone, email, or Skype-whenever you need it, we're here for you.
Benefit from a 1-year warranty period, ensuring peace of mind and reliable operation.
Our expert senior engineer is ready to travel abroad to assist with installation, maintenance, and staff training, ensuring seamless operation and efficiency.
1. Are your company a trading one or a factory? We are an integrated entity combining both factory and trade, boasting 14 years of dedicated expertise in UPVC, Aluminum Window and Doors Equipment, as well as curtain wall equipment. 2. After an order is placed, when to deliver? Generally, our delivery time is around 30 days. If we have items in inventory, we can expedite shipment within 10 days. Please note that our production lead times are subject to specific items and quantities ordered. 3. What about the warranty with after-sales services? We offer a comprehensive 12-month warranty. Beyond this, we are committed to assisting you with any issues at no additional cost. Post-warranty, our professional after-sales service team will continue to provide exemplary technical support and resolve any problems customers encounter with our products. We pride ourselves on handling guest issues and complaints promptly and professionally. 4. What about the services and product quality? Each machine undergoes a rigorous 100% quality examination and testing before shipment. Moreover, all our machines are compliant with ISO and CE certifications. 5. We don't know how to operate the machine, what should we do? We can dispatch an engineer to your location or provide detailed video training to demonstrate installation and operation. Additionally, our engineers are available for online support.
