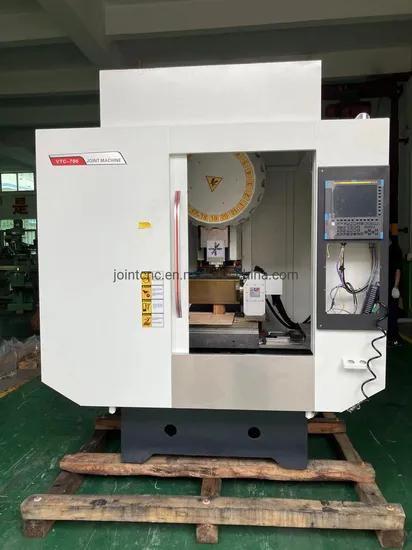

Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools

Product Description

SPEEDCN 4 axis Vertical Drilling Tapping Machine CNC cutting tools
Product Charactristics:
1. Three axes are all linear guiding pair, theirs rapid feed speed are 60m/min.
2. Strength its rigidity when designing construction, thus except for basic drilling funcations, it can also be used for low strength milling of aluminum parts.
3. Coupling, bearing, spindle, ball screw, linear guideway, tool magazine, play knife cylinder, guideway cover etc these key parts adopt German, Japan, Taiwan top brand, ensuring high precision and high stability of the machine.
4. Modularization of various configurations, through which satisfy customers' different pricessing requirements and personalized selection: 10000-20000rpm, 16T or 21T tool magazine.
5. This series of drilling and tapping machine is designed mainly for porous precision small parts, with advantages of high processing speed, changing tool swiftly.
6. Our company accumulates and continuously optimizes the customer application data, can provide customers with application technical support, effcient processing performance is more outstanding.
Industrial Applicant:
Handphone shell Mechanical part Digital camera part
Product specifications:

Item	Unit	Parameters
X axis travel	mm	800
Y axis travel	mm	500
Z axis travel	mm	330
Distance between spindle surface and working table	mm	150-480
Distance between spindle center and column	mm	546
Working table size	mm	1000*500
Max load of working table	KG	350
T slot number (No*size*pitch)	mm	5-18*100
Tool holder specification		BT30
Installation diameter	mm	100
Rivet specification		BT30
Rotation speed range	r/min	40-20000
Output rating	N.M	14.1/11.8
Spindle motor rate	KW	3.7/3.7
X/Y axis motor output torque	N.M	9/8
Z axis motor output torque	N.M	22.5/12
X/Y axis motor rate	KW	1.5/2.5
Z axis motor rate	KW	3/2.7
Cutting feed	m/min	15
X,Y,Z axis rapid movement speed	m/min	48/48/48
Positioning accuracy	mm	0.005/0.005/0.005
Rapid positioning accuracy	mm	0.004/0.004/0.004
Dimension	mm	2330*1930*2250
Total electrical capacity of machine	KVA	15
The host weight	KG	3800

Product details:

Standard Accessories: 1. Fanuc/ Mitsubishi control system 2. Fully closed cover 3. Three axes Rexroth linear guideway 4. SPEEDCN spindle (BT30/100 diameter/20000rpm) 5. 21T servo tool magazine 6. Spindle oil cooler 7. Heat exchange 8. BT30 tool holder 1pic; 6'' vise 1pic; clamping kit 1 set 9. Penumatic system 10. Auto lubrication system 11. Work piece cooling system 12. Clean air gun/ water gun ......etc Optional Accessories: 1. Chain type auto chip conveyor 2. 4 axis

Package:
Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
