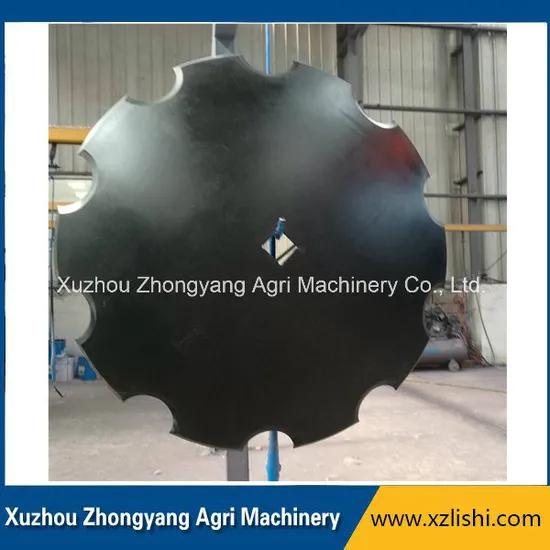

65mn and Boron Steel Plough Harrow Disc Blade

65mn and Boron Steel Plough Harrow Disc Blade

US$3.00-240.00 1 Piece (MOQ)

Basic Info.

Model NO.
12′′-36′′
Material
Carbon Steel
Power Source
Diesel
After-sales Service
1year
Warranty
12 Monthes
Hardness
40-48HRC
Thickness
3mm-12mm
Color
Black or Dark Blue
Procuct Name
Disc Blade
Use for
Disc Harrow or Disc Plough
Transport Package
Iron Pallet
Specification
12inch to 36 inch
Trademark
zhongyang
Origin
Xuzhou
HS Code
8432900000
Production Capacity
1000000PCS

Product Description

Product Description
Harrow discs:
1. Diameter: 3'' to 36''
2. Thickness: 3mm to 12mm
3 Hardness: 38 to 46HRC
4 Model: Flat and notch
There is an existing advanced productiion line of forging ,casting ,maching,heat treatment
in the company.The products export to Europe,America,Astrailia,Southest Asia and other
countries and regions all the year round and enjoy good fames in the user.
Main specifications:

Diameter Concavity Thickness
mm inch mm Mm
305 12 19 3
330 13 25 3
355 14 38 3
410 15 38~50 3
435 17 57 3;3.5;;4
460 18 38~63 3;3.5;4
485 19 57 3.5;4
510 20 44~70 3.5;4;5
535 21 63-70 3.5;4;5
560 22 54~89 4;5;6
585 23 79~90 4;5;6
610 24 63~108 4;5;6
660 26 86~115 5;6;7;8
710 28 100~130 5,6,78
760 30 120~135 6,7,8,10,12
810 32 120~140 8;10;12
910 36 120-200 8,10,12

chemical composition of our 65Mn steel
composition C Mn Si S P Ni Cr Cu Nb
contents % 0.62~0.70 0.90~1.2 0.17~0.37 ≤0.035 ≤0.035 ≤0.25 ≤0.25 ≤0.025 __

Shpping term :
1.FOB Qingdao port
2CNF or CIF your port
3 Others
Payment term:
1.By T/T. 30% prepaid , 70% before delivery or on sight of BL copy
2.By L/C if your quantity is big
