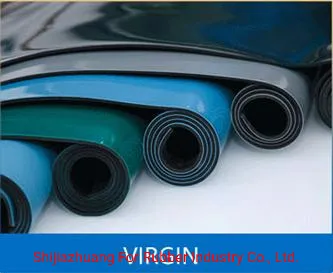

Anti-Static Rubber Mat with Various of Colors and Size

Product Description

Anti-static rubber sheet (pad), also called anti-static pad, insulating rubber sheet, is mainly made with conducting electrostatic materials, static dissipative material, synthetic rubber, etc. Products generally have two layer structures, the surface layer is the static dissipative layer, and the underlying is for conductive layer. Anti-static mat's service time is long and has very good acid proof, alkali proof, prevent chemical flux characteristics, and wear-resistant, It's also easy to clean.

Structure	Two layers composite
Surface Treatment	Glossy or Dull
Surface Size	Length(10m)*Width(0.6,0.8,1.0,1.2m)*Thickness
Surface Resistivity	106-109Ω
Bottom Resistivity	103-105Ω
Volume Resistivity	105-108Ω
Static Dissipative Time	<0.1s
Rate of Wear	0.02g/cm²

Description:
Standard Size:
0.6m*10m,0.9m*10m,1.0m*10m,1.2m*10m
Different Thickness Available:
1.6mm/1.8mm/2.0mm/3.0mm/5.0mm
Colors:
Green Smooth/Green Dull/Blue Smooth/Blue Dull/Gray Smooth/Gray Dull
Item : ESD rubber table mat
Standard Size: 2mm x 1m x 10m
Customized Size: Available
Color:Green and Black
Surface:Smooth surface both sides
Structure: 2 layers composite structure
Tensile Strength :4MPa
Elongation : 250%
Hardness: 65+/-5 shore A
Surface Resistivity: 106-109Ω
Underlying Resistance :103-105Ω
Performance:Anti-static Heat and chemical resistance
USE CASE
Functions:
During the production process, it was found that a large amount of electrostatic micro-current would be generated in the process of production, human contact and material flow, electrostatic current has fatal damage to electronic components and chips. In order to avoid this problem, anti-static ultra-clean production line came into being under this background.
Anti-static rubber plate laid in the production of electronic components in the assembly line workbench and workshop floor, wall, extremely high to avoid the damage of static electricity to the product.
At present, this product is widely used in almost all large and medium-sized electronic manufacturing plants.
Company Introduction:
HENYERRUBBER anti-static mat was founded in 1998, after more than 20 years of exploration and development, the current production and R & D of anti-static rubber sheet, exported to the domestic and foreign, is the anti-static rubber sheet industry backbone. At present, the factory has 15 anti-static rubber sheet production lines, the annual production of anti-static rubber sheet more than one million square, ranking the leading level of the industry.
Relative to peers, product cost control better price has advantages.
All-natural rubber Rosh 2.0 ultra-environmental series with the leading technology, quality, price are in the peer has advantages.
With the United States Zeon Group (Zeon) to develop ECO permanent anti-static sheet for the market pioneering products.

Our current customers: South Korea Samsung Electronics, LG Electronics, Sony, Foxconn, green source, Huawei, TSMC and the Yangtze river delta, Pearl River delta large, medium and small-scale domestic component manufacturers.

Shangluo electronic company is a trading enterprise, and its related upstream and downstream enterprises need to use anti-static products in the production and assembly process. Anti-static plywood has a loss, the product demand directly proportional to the output of the enterprise.
