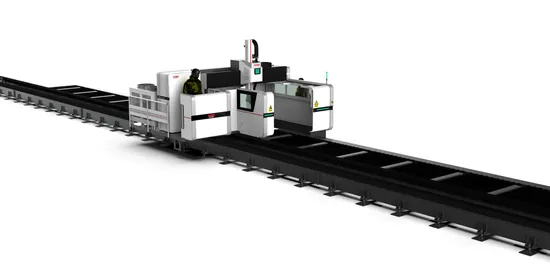

H Beam Laser Cutting Machine Support Tekla 3D Modeling Steel Structure Dara File

Product Description

Company Profile
Ezhou KEBEI Laser Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel.
KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.
Product Description
Fiber Laser Cutting Machine for H-beam & Tube
The field of steel structure processing still uses traditional manual and semi-automatic blanking methods. There is an urgent need for an efficient and high-quality processing method to improve efficiency and quality and reduce labor costs. We are committed to providing high-efficiency, high-precision, and cost-effective automatic processing equipment to solve these problems by providing high-precision cutting and significantly reducing the amount of welding: high-precision cutting means that there is no need for excessive grinding, and parts assembly and welding can be easily realized , Eliminate the original backward methods with high labor costs, low efficiency, and cumbersome procedures. The unique three-dimensional six-axis five-link technology innovation developed for section steel processing helps users greatly improve production efficiency and product quality. If the user's output is saturated, the cost can be recovered in the same year.
Technological Design
Product Parameters

serial number	name	Technical Parameters
1	Steel cutting range	Height B ≤ 450mm Width H ≤ 1000mm Length L≤ 26000mm (customized on demand)
2	Laser power	12kw/20kw/30kw
3	X-axis travel	26000mm
4	Y-axis travel	1550mm
5	Z axis travel	1040mm
6	A-axis range (rotary axis)	±90°
7	C-axis range (rotary axis)	±45°
8	U axisrange (rotary axis)	±40mm
9	X/Y/Z maximum positioning speed	30m/min
10	X/Y/Z positioning accuracy	≤ 0.1 mm
11	Cutting accuracy	≤ 0.5 mm

Cutting Samples

Packaging & Shipping
Certifications
Trade Show
FAQ
1. What factors should be considered when choosing a laser cutting machine?When choosing a laser cutter, consider factors such as the type of material being cut, required accuracy, speed, production cost and machine energy efficiency.2. Is the laser cutting machine safe to use?Although laser cutters are generally safe to use when proper safety procedures are followed, they can also cause hazards such as burns, eye injuries, and exposure to fumes. Using proper safety equipment and training is crucial.3. How efficient is the fiber laser cutting machine compared to other types of laser cutting machines?Fiber laser cutting machines are known for their high efficiency, especially when cutting thin materials. Fiber laser cutting machines also save significant energy compared to other types of laser cutting machines.4. What are the advancements in laser cutting machine technology?Advances in laser cutting machine technology include improvements in accuracy and cutting speed, improvements in energy efficiency, the development of machines capable of cutting thicker materials, and the integration of smart software for increased levels of automation and control.
