Hot Selling CNC Bus Bar Bending Cutting Punching Copper Busbar Processing Machine with Professional Technical

Product Description

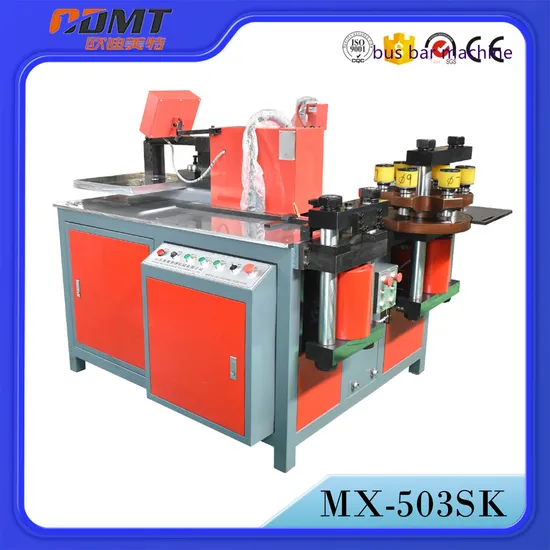

CNC Busbar Processing Machine
Product Description
This series CNC busbar processing machine has three units: punching, shearing and bending. It is easily to adjust each unit to shorten the processing time and improve the production efficiency. The bending unit uses the imported PLC control system, which have stable system and high precision. It is used to processes copper and aluminum busbars in different specification. By relative operation unit if can easily and quickly do all kinds of processing to copper and aluminum busbar, such as shearing , punching(circular hole and oblong hole), flat/honrizental bending, vertical bending and knurling. Change different mold to do special processing to copper bar, such as flat press, embossing, cable connector process, and can do cutting, flat crushing, pushing, and bending.
Our Advantages

PRODUCTS REAL SHOT
Product Parameters

Function	Item		MX-303SK	MX-503SK
Punching	(Kn)	Max . strength	300	500
	(mm)	Diameter range	Ф4.3~Ф25	Ф4.3~Ф34
	(mm)	Max . thickness	12	16
	(mm)	Max . width	150	250
Shearing	(mm)	Max . shearing thickness	12	16
	(mm)	Max . sharing width	150	250
Honrizental bending	(Kn)	Max . strength	300	500
	(mm)	Max . width	150	250
	(mm)	Max . thickness	12	16
Vertical bending	(mm)	Max . width	100(10mm)	120(10mm)
	(degree)	Min . angle	90°	90°
(mm)Dimension	(mm)		1500*1300*1200	1800*1500*1300
(Kw) Power	(Kw)		3*4Kw	3*5.5Kw
(Kg) Weight	(kg)		1250kg	1750kg
CNC precision	(degree)	Bending precision	±1°	±1
	(degree)	Repeat Bending precision	±0.3°	±0.3°

The shearing unit uses sharp shearing, the incision interface is flat, no droop and burrs and waste, beautiful shape.
The punching unit uses an united six-mode template in tooth shape to make sure the upper mold and the lower mold are absolutely in the center, improve the mold concentricity and longten the working life. The turnplate is in tooth shape with good view and high strength. No need to frequently change molds, labor intensity is highly reduced. It is easy and quick to use. Producing efficiency is obviously higher than a traditional one.
The unit uses a closed structure to make sure the flat bending and embossing morem smooth, which highly improve the repeating precision during mass production and prolong the working time. The bending unit is a honrizentaly operating rype and it is very easy to operate.
S series allow three working positions can do their only operation at same time without bothering the others. Working efficiency is highly raised, D series only allow one person to operate.
The machine has four casters so it is easily to be moved everywhere there are two operating modes, manual button and foot switch, which is easily for worker to operate and use. Based on user's requirement, it can do all kinds of special shape processing with different molds or equipping parts.

It is special machine for cutting,bending and punch- ing on aluminum and copper bus bars.Various samples; cut angle sample; twisting bend copper bar; press cable joint sample; embossing sample; cutting sample; punching sample Packaging & Shipping
Delivery Term: FOB Qingdao, by vessel
Delivery Time: 35 working days
Payment Terms: T/T (30% to pay by T/T as down payment , the rest 70% is paid by T/T before delivery.)
Installation / Operation / Service / Manual: In English
Installation team: Commissioning service provided for 4-7 days. The client bears the technician's round-trip flight tickets, accommodations and daily salary USD100.)
Warranty: One year from the date of completion of the commissioning.
Pre-shipment Inspection: Supplier should trial run whole line at supplier's factory before shipment.
