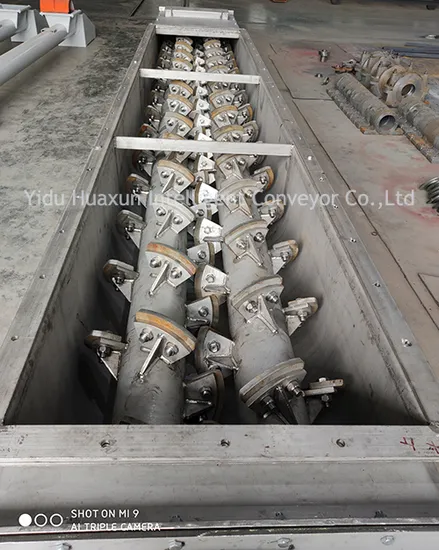

Auger Conveyor/Agitator for Biaxial Humidification & Blending with High Capacity

Product Description

A screw conveyor or auger conveyor is a mechanism that uses a rotating helical screw blade, called a "flighting", usually within a tube, to move liquid or granular materials. They are used in many bulk handling industries. Screw conveyors in modern industry are often used horizontally or at a slight incline as an efficient way to move semi-solid materials, including food waste, wood chips, aggregates, cereal grains, animal feed, boiler ash, meat and bone meal, municipal solid waste,Sludge & Water treatment.
LS Screw conveyor is designed according to ISO1050 standard,Its hanging bearing has roll and slide structure with sealing device,it has clean device in the discharge port,the inlet and outlet are setuping flexibly,there are low noise, strong adaptability and operation and maintenance smoothly. The sealed parts is made in nylon and PTEF resins which has small resistance, good sealing and wear resistance.

model	LS100	LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
screw diameter(mm)	100	160	200	250	315	400	500	630	800	1000	1250
pitch of screw(mm)	100	160	200	250	315	355	400	450	500	560	630
speed(r/min)	140	112	100	90	71	71	63	50	40	32	25
capacity(M³/h )	2.2	7	13	22	49	62	98	140	200	280	380
speed(r/min)	112	90	80	71	56	56	50	50	32	25	20
capacity(M³/h )	1.7	6	10	18	39	49	78	112	160	220	306
speed(r/min)	90	71	63	56	45	45	40	32	25	20	16
capacity(M³/h )	1.4	5	8	14	29	39	62	90	126	176	245
