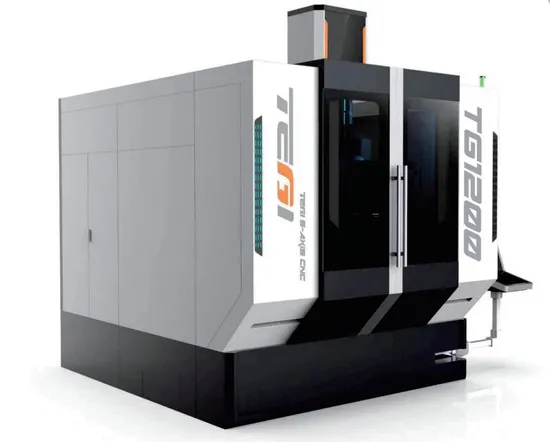

High Precision Good Quality 5 Axis Automatic CNC Milling Lathe Machine

Product Description

Company Profile
Product Parameters

Item	Technical Parameters	TG260	TG380	TG450	TG650	TG800	TG1000	TG1200
Scope of processing	Table diameter	260mm	380mm	450mm	650mm	800mm	1000mm	1200mm
	Maximum rotary diameter of workpiece	500mm	600mm	670mm	800mm	1100mm	1200mm	1400mm
	Countertop below axis A	35mm	75mm	75mm	100mm	100mm	100mm	100mm
	Maximum height of workpiece and fixture	350mm	500	500	600	700	900	1100
	Maximum weight of workpiece and fixture	150kg	300kg	500kg	1000kg	1500kg	2000kg	3000kg
5-axis travel	X/Y/Z travel	280/580/300mm	400/580/380mm	460/600/400mm	650/800/550mm	800/1000/600mm	1000/1200/800mm	1200/1400/1000mm
	Distance between spindle end face and table	120-420mm	120-500mm	150-550mm	150-700mm	150-750mm	180-980mm	180-1180mm
	A-axis front-back swing range	±140°	±140°	±140°	±140°	±140°	±140°	±140°
	C-axis rotation range	N*360°	N*360°	N*360°	N*360°	N*360°	N*360°	N*360°
Linear axis screws, guideways, servo motors	XYZ Guideway Model	35roller	45roller	45roller	45roller	55roller	45roller	45roller
	XYZ screw type and pitch	32-16two-nut	40-16two-nut	40-16two-nut	40-12two-nut	50-12two-nut	50-12two-nut	50-12two-nut
	G00 Speed	48M/MIN	48m/min	48m/min	48m/min	72m/min	72m/min	72m/min
	XYZ servo motor maximum speed	3000RPM	3000RPM	3000RPM	3000RPM	6000RPM	6000RPM	6000RPM
Rotary shaft drive type Torque, speed	A-axis rated/maximum torque	415NM	600NM	1100NM	4500NM	7000NM	12000NM	15000NM
	A-axis rated speed	30RPM	30RPM	30RPM	30RPM	30RPM	30RPM	30RPM
	C-axis rated/maximum torque	180NM	200NM	400NM	1350NM	1500NM	6000NM	8000NM
	C-axis rated speed	300RPM	30RPM	30RPM	30RPM	30RPM	30RPM	30RPM
Spindle	Electric spindles/mechanical spindles	Electric spindle	Electric spindle	Electric spindle	Electric spindle	Electric spindle	Electric spindle	Electric spindle
	Spindle toolholder interface	HSK-E50	HSK-A63/A50	HSK-A63/A50	HSK-A63	HSK-A63/A100	HSK-A100	HSK-A100
	Spindle speed	24000RPM	18000RPM	18000RPM	18000RPM	18000/12000RPM	12000RPM	12000RPM
	Spindle torque	28NM	83/120NM	83/120NM	85/120NM	85/120/200/350NM	200NM/350NM	300NM/500NM
	Center outlet function optional	Optional	Optional	Optional	Optional	Optional	with center outlet	with center outlet
Tool	Tool magazine capacity	24T	36T	36T	36T	36T	48T	48T
Closed-loop control and accuracy	XYZ axis closed loop control optional	Optional	Linear encoder as standard	Linear encoder as standard	Linear encoder as standard	Linear encoder as standard	Linear encoder (scale) as standard	Linear encoder (scale) as standard
	XYZ axis positioning/repeat positioning accuracy	0.005/0.003mm	0.005/0.003mm	0.005/0.003mm	0.005/0.003mm	0.005/0.003mm	0.005/0.003mm	0.005/0.003mm
	AC axis closed loop control optional	Optional	Circular encoder as standard	Circular encoder as standard	Circular encoder as standard	Circular encoder as standard	Circular encoder as standard	Circular encoder as standard
	A-axis positioning/repeat positioning accuracy	5"/3"	5"/3"	5"/3"	5"/3"	5"/3"	5"/3"	5"/3"
	C-axis positioning/repeat positioning accuracy	5"/3"	5"/3"	5"/3"	5"/3"	5"/3"	5"/3"	5"/3"
Size,weight	size	1.7m/2.2m/2m	2m/3m/2.4m	2m/3m/2.4m	2.3m/3.8m/2.5m	2.4m/4.1m/2.6m	3m/5m/3.2m	3.3m/5.6m/3.8m
	weight	5T	6.5T	7.5T	11T	15T	30T	40T

FAQ: 1.Q: Which trade term I can choose? A: You can choose FOB,FCA 2.Q: How can I get quotation from you? A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday. 3.Q: how can I make the payment? A: You can pay by T/T . You can also pay to my company business bank account. 4.Q:What is your delivery time ? A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. We want to know: Please tell us your specific purchasing requirements, so that we can make specific quotations. Why choose us ? 1. Compared with other factories, casting material which produced by our company independently is really better than the others. 2.one year guarantee for whole machine . 3.24-hours technical support by E-mail or telephone 4.Provide extra accessories for the machine 5.Also provide service of make program according to your drawings 6.Customized or special design is OK.
