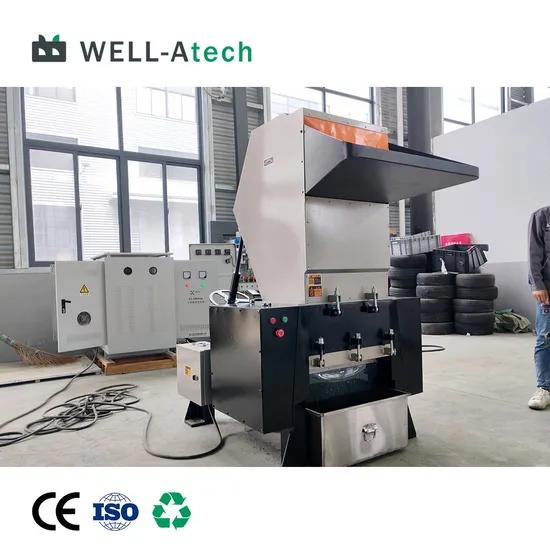

Plastic PVC Bag Pet Bottle Waste Plastic Crusher for Recycling Crushing Machine
| US$2,000.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WEC-400
Type
Hard Plastic Crusher
Raw Material
PVC
Structure
Top Feed
Automation
Automatic
Certification
CE
Capacity
250 - 400 Kg/H
Power (Kw)
7.5
Dimension(L*W*H)
1290*860*1180mm
Weight (Kg)
430
Applicable Industries
Manufacturing Plant, Recycling Industry
Key Selling Points
Multifunctional
Voltage
220V/380V/Customize
Crushing Material
Pet PE PP PVC ABS
Final Product
5-10mm
Core Components
Bearing, Motor
Rotating Speed(R/Min)
580
Rotor Blades
12
Counter Blades
2
Feeding Port Size(mm)
400*250
Screen Size(mm)
10
Transport Package
Wooden with Film
Specification
1290*860*1180mm
Trademark
WELL-Atech
Origin
China
HS Code
8477800000
Production Capacity
300sets
Packaging & Delivery
Package Size
139.00cm * 96.00cm * 128.00cm
Package Gross Weight
460.000kg
Product Description
WEC series crusher is a powerful crusher with multi applications. Its main function is to crush all kinds of hard and soft plastics, grind block, round or strip shaped and outlet plastic into granules. It plays a vital role in prompt recycling and processing of plastic scrap, waste and recycling materials, enhancing the utilization of plastic.It can be installed beside the main machine to crush recycled materials during the operation of the main machine. It can also be used to crush centralized materials collected from a production line.
The crushed material size can be adjusted according to screen aperture,final product size is about 5-20mm.
Product Description
Project Site
Product Parameters
| Model | WEC-300 | WEC-400 | WEC-500 | WEC-600 | WEC-700 | WEC-800 | WEC-1000 | |
| Power | 5.5kw | 7.5kw | 11kw | 15kw | 22kw | 30kw | 37kw | |
| 7hp | 10hp | 15hp | 20hp | 30hp | 40hp | 50hp | ||
| Rotating Speed(r/min) | 610 | 580 | 600 | 500 | 490 | 440 | 440 | |
| Rotating Diameter(mm) | 72 | 72 | 78 | 82 | 110 | 110 | 110 | |
| Rotor Blades | 9 | 12 | 15 | 18 | 21 | 24 | 6 | |
| Counter Blades | 2 | 2 | 2 | 4 | 4 | 4 | 4 | |
| Capacity(kg/h) | 150-200 | 250-400 | 300-500 | 500-600 | 600-700 | 700-800 | 900-1000 | |
| Feeding Port Size(mm) | 300*200 | 400*250 | 500*285 | 600*315 | 685*430 | 800*450 | 1000*500 | |
| Net Weight (kg) | 300 | 430 | 550 | 800 | 1325 | 1800 | 2000 | |
| Screen Size(mm) | 8 | 10 | 12 | 12 | 12 | 12 | 14 | |
| Dimension(mm) | 1070*720*1080 | 1290*860*1180 | 1370*1000*1390 | 1540*1150*1660 | 1750*1250*1960 | 1950*1370*2180 | 2250*1600*2400 | |
| Voltage | Can be customized | |||||||
Features
Application
Mainly used for the plastic boxes,plastic pipes,blow molded parts, PET bottles,plastic film,plastic lump and other plastic products.
