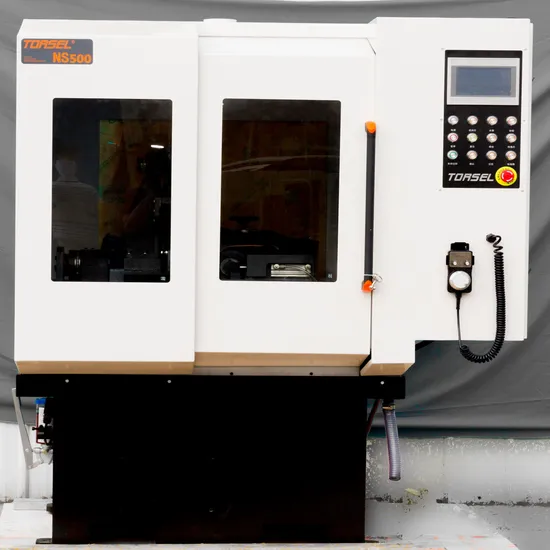

2021 High-Efficiency Automatic CNC Controlled Circular Saw Blade Tooth Side Angle Precise Grinding Machine

Product Description

2021 high-efficiency automatic CNC controlled circular saw blade tooth side angle precise grinding machine

Saw blade diameter	110mm~510mm
Saw blade thickness	0.5~8mm
Side angle	5°~-5°
Side relief	5°~-5°
Hook angle	-5°~28°
Bore diameter	12~120mm
Pitch	2~65mm
Tip length	1~15mm
Wheel diameter	80~100mm*32mm
Wheel speed	5000r/min
Grinding speed	1~20mm/s
Power	3KW
Dimensions	1400*1250*1820mm
Weight	1400kg

1. It is mainly used for grinding the side
of high-end power tools, general aluminum alloy saw blades and general board furniture saw blades.
2. Four-axis servo, the equipment is all controlled by digital signal, the equipment has no proximity switch, sensor and other vulnerable parts.
3. Side relief angle and side angle are set from the screen without manual adjustment. It is very convenient to operate the equipment.
4. To change the specification, manually change the bore washer and adjust the saw blade diameter. The other parameter are set by the screen.
5. Electronic hand wheel is adopted to set knife, which is very easy to operate.
6. The processed specifications can be formulated, the processing parameters can be stored in the memory of the device, and the next processing of this specification can be completed by direct call.
1.What is the payment terms?
---L/C, T/T
2.Which is the grinding surface of the grinding machine NS500?
---It can grind the side surface of the tip.
3.Where is the loading port?
---Tianjin, China.
4.Is the company's technology for producing saw blade grinding machines mature?
---Sure,our company have more than 120 technicians, and they have more than 20 years working experiences.
5.Where is the address of the factory?
---Our factory is located in Tangshan city, Hebei province, China.
6.What is the grinding accuracy of the grinding machine?
---The accuracy of the grinding machine is between 0.01-0.03mm.
7. Which tooth surfaces of the saw blade can your grinding machine grind?
---It can grind any tooth surface, and you can choose a grinding machine to grind the tooth top, tooth face or side surface according to your needs.
8. Are you a manufacturer or a trading company?
---We are professional saw blade grinding machine manufacturer. We have more than 120 technicians dedicated to the design, development and production of saw blade grinding machines. And there is an independent sales department and after-sales department to provide you with services.
9. How can I select a suitable grinding machine?
---You can tell us your requirements of saw blade grinding machine, and other parameters of your saw blades, we will give you professional suggestion.
10. Can I contact you if I have any questions?
---Sure, we will serve you wholeheartedly, please feel free to contact us if you have any questions.
