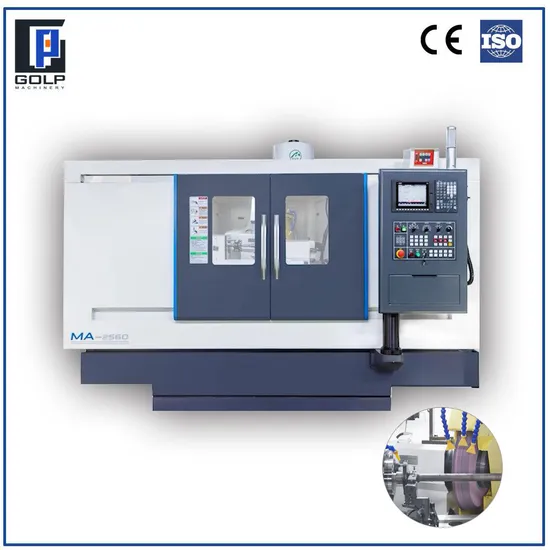

Precision CNC Outer Diameter (OD) External Cylindrical Grinding Machine for Shafts/ Disc Parts

Product Description

Provide a complete solution for cylindrical and end face grinding of shaft and disc parts, which can be equipped with truss or joint robots.
optional :Automatic loading and unloading storage system;
Rich, stable and reliable functional modules;

MA:Angled Feed
MP:Straight Feed

ITEM	MA oblique/MP straight
	MA2530	MP2530	MA2560	MP2560
max processing diameter mm	Ф250		Ф250
max processing length mm	300		600
max loading kg	80		80
max spindle rotate diameter mm	Ф260		Ф260
X/Z axis travel mm	180/300		180/600
X/Z servo motor power kw	1.5/1.5		1.5/1.5
spindle motor power kw	5.5		5.5
max grinding wheel mm	Ф450xФ127x120		Ф450xФ127x120

Functional module
Δ Static spindle: High rigidity front and rear radial hydrostatic bearings, with high rotary accuracy, high rigidity, stable rotation, no vibration and long life. Motor belt drive, infinitely variable speed, constant line speed.
Δ Grinding wheel dressing: Diamond pen or servo driven diamond roller dresser to meet different needs.
Δ Measuring device(optional): End face, outer diameter equal gauge can be selected according to grinding requirements of workpiece.
Δ Workpiece driving device(optional): Automatic tractor, driving ring, clamp, etc. canbe selected according to grinding requirements of workpiece.
Automatic & connect line
CNC cylindrical grinding machine + Truss robot
Automatic production line
Automatic production line refers to the process by which the machines on a production line are linked together to form a production line which can auto-matically control,measure and continous processing including feeding, loading,unloading and product processing.
Layout principle
Flow principle: organic combination of each process, centralized placement of related processes and fluidized layout.Short-distance principle: minimize handling, process can not be crossed, straight running.Balance principle:resources allocation between workstations and speed allocation should be balanced as far as possible.Fixed cycle principle: minimize handling. Princi-ple of economic output: adapt to the situation of small-scale production.make use of space and reduce the placement of ground.Principle of flexibility: sufficient strain on future changes and flexible plan.Error-proof princi-ple: prevent errors from hardware layout and reduce production losses.
