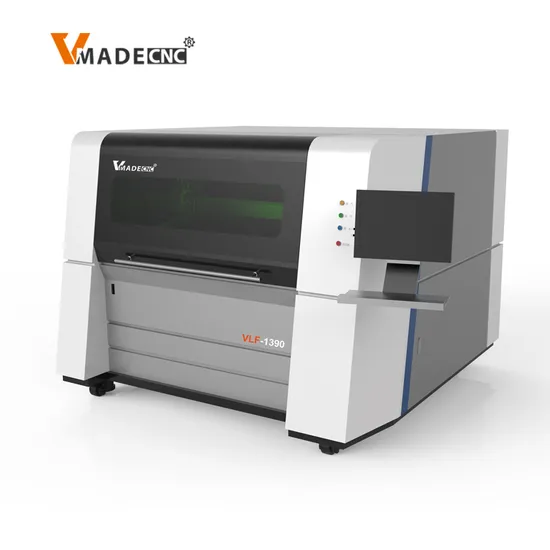

600*600mm 1390 for Cutting Metal Plate Precision Fiber Laser Cutting Machine

Product Description

VMADE Small Area 1309 CNC Fiber Laser Cutting Machine For Price
VMADE fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.
Settings and Parameter
Settings and Parameter

Raytools laser head
Raycus laser source
Yaskawa servo motor and drivers
Motovario Reducer
Taiwan grinding TBI ball screw
Taiwan LAPPING guide rail
3rd Generation Aviation Aluminum Gantry
Heavy industrial bed
Lenovo computer and Cypcut Software
Full enclosed cover
Saw bed
Industry Chiller
Remote controller
Warranty (except consumable parts)	3 years for laser and machine
Production time	15-20 working days after prepayment
Payment terms	30%TT before production and 70% before shipping

Main Features of Fiber Laser VMADE CNC VLF 1390 (1) High photo-voltaic conversion rate (above 30%), which helps to save electricity and costs greatly to guarantee the highest production efficiency. (2) When processing, the laser only consumes electricity and doesn't need extra gas(only auxiliary gas ), bringing the minimum operation and maintenance costs. (3) Adopting semiconductor modular and redundancy design, without any optical glass in resonant cavity and without start time, so it is in high stability and doesn't need adjusting and maintaining, which saves the costs and time. In this point, the traditional laser is not comparable. (4) The output wavelength of fiber laser is 1.06μm, which is a tenth of CO2 wavelength. The output beam is in high quality and power density, so it is easy to be absorbed by metal materials and therefore has great power to cut and weld to make the lowest processing costs.

Raycus Laser source	High electro-optical conversion efficiency Customized output fiber length QBH connector Maintenance-free operation Wide modulation frequency range Small size, easy to install
Raytools head autofocus	The BM109 series are auto-focusing laser cutting heads released by RAYTOOLS AG in 2017 for fiber laser processing with 1.5kW or less. This products have a built-in motor drive unit, which drives the focusing lens through a linear mechanism to change position automatically within 17mm.Customers can set the program to achieve continuous focus that completing the rapid piercing and cutting material with different thickness. BM109 use the D28 diameters lense set to collimate and focus the laser beam, which can achieve the diffraction-limited optical effect. The design of water-cooled structure allows laser heads to work stably and chronically.
Yaskawa servo motor and driver	Real-time auto-gain tuning Manual and auto notch filters Manual and auto damping filters Setup software with motion simulation New structure innovative core high-precision encoder Complies with European safety standards Low interference
Tongfei Industrial Chiller	Using high-pressure electrostatic spray treatment, the appearance is elegant and unique, and durable. The control system adopts liquid crystal Chinese and English conversion computer controller, fully automatic control, simple and intuitive operation. With automatic fault diagnosis function, the fault point is directly displayed on the screen, prompting the user to process quickly.
Taiwan guide rail	Hiwin linear slide rails are four-row single arc-arc contact linear slides, and integrate heavy-duty precision linear slides with optimized structural design to improve load and rigidity compared with other linear slides; It has four-direction load characteristics and automatic self-aligning function, which can absorb the assembly error of the mounting surface and obtain high-precision appeal.
Cypcut visualized interface	Automatic graphics optimization Simple process settings Flexible processing toolbar Rich data statistics Accurate patrol assistance Double deviation self-correction
France Moto Reducer	The company is located in Saint-Etienne, a traditional production base in Europe. It is created by cooperation between MOTOREDUCER and a well-known French aerospace equipment manufacturing company through years of technical exchanges, global market analysis and strategic planning Highly demanding, higher standards and more comprehensive transmission equipment manufacturing enterprises. MOTOREDUCER planetary reducer has been promoted in the Chinese market since 2010, and has successfully served thousands of industrial equipment manufacturers in various fields. Now, in order to meet the improvement of the overall level of industrial manufacturing and better adhere to the "use technology to create value for the world" concept, in 2018 will launch a higher performance, more comprehensive RECKON-MOTOREDUCER precision planetary gearbox series products.
Apex Rack and gear	These drives are perfect for a wide range of applications, including axis drives requiring precise positioning & repeatability, traveling gantries & columns, pick & place robots, CNC routers and material handling systems. Heavy load capacities and duty cycles can also be easily handled with these drives. Industries served include Material Handling, Automation, Automotive, Aerospace, Machine Tool and Robotics. The rack product range consists of metric pitches from module 1.0 to 16.0, with linear force capacities of up to 92,000 lb. Rack styles include helical, straight (spur), integrated and round. Rack lengths up to 3.00 meters are available standard, with unlimited travels lengths possible by mounting segments end-to-end. Quality levels available include soft, induction-hardened, quenched & tempered and hardened & ground (up to AGMA 12+ and DIN 4).

Samples show
PHOTOGRAPHS OF FACTORY
