China Manufacturer Disposable Noodle Paper Bowl Making Machine

Product Description

MG-B600 Paper Bowl Machine
PRODUCTS
TECHNICAL SPECIFICATION

Model	MG-B600
Paper cups specifications	5-50oz (150ml-1500ml)(mold exchangeable) T:150/50MM H:125/35MM B:110/50MM
Paper specification	150-350 GSM single/double PE coated paper
Production capacity	60-80 pcs/min
Voltage	220V/380V
Total Power	8KW
Air supply requirement	Air pressure: 0.4Mpa, Air Out-put: 0.4cbm/minute
Total Weight	3500KG
Dimensions	2600mm*1300mm*1600mm
Note	Customized service is available

MACHINE INTRODUCTION
MG-B600, a newly developed from three turn-plates old type bowl machine, achieves a manufacturing speed of 60-80pcs/min. This piece of paper converting equipment provides a multi-station design and is able to make single and double PE coated beverage bowls, ice cream
bowls. In addition to that, this integrated automatic paper container forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling and collecting. SYSTEM
FEATURE The machine adopts open cam type structure, high precision, large out-put and long life. Longitudinal gear drive. This make up the chain drive jitter and instability's weakness. Whole machine is box type structures design, filling oil by spray lubrication system So that it can run fast and stably. Photoelectric failure-detacting system is available.PLC control sysyem for the whole cup forming process.
CERTIFICA

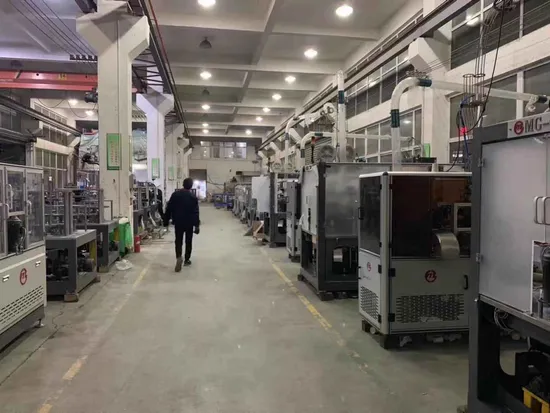

OUR COMPANY
Ruian Mingguo Machinery Co., Ltd is specialized in manufacturing automation machinery and equipment of paper containers. We transcend constantly, innovation, pursue excellence and effort to improve ourselves. We have a strong technical force, exquisite workmanship, rich manufacture experience and absorbed the advantages of similar products widely to comparison, analysis, and digestion. Now developed a series of products achieved leading position: high speed intelligent paper cup machine,vertical axis paper cup machine,vertical axis paper bowl machine,paper cup machine,paper bowl machine,KFC paper bucket bowl machine,automatic handle paper cup machine, cup top flatten machine, paper plate machine and paper punching and die cutting machine.
Our company adhered to the "sincere cooperation and create brilliant" for enterprise policy. We will wholeheartedly to providing the best products and the excellent service for customers.
Ruian Mingguo Machinery Co., Ltd warmly welcomes the domestic and foreign customers sincerely cooperate with mutual benefit and create brilliant.
EXHIBITION
PACKAGING
FAQ
1: Are you a manufacturer?
Yes,We have been in making paper cup machine for nearly 7 years We have our own workshop,
and nearly 60 workers here.
2:What about the payment term ?
Mostly 30%T/T in advanced,the rest need paid before shipping.
3:Where is your factory location?
We Are Location In Feiyun District ,Feiyun Street Ruian City,Zhejiang Province,China

4:How's your after-sale service?
we offers one year warrantyr and we can send to you freely if there is any spare part broken because of our reason.
Our engineers can also go to your factory to install machines and train your workers.
5:What about the Delivery time?
Within 40-50 days after receipt of advance payment and cup sample
Any problems contact me anytime!
