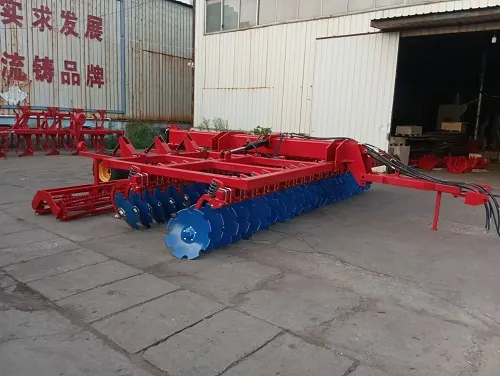

Heavy Duty Disc Harrow
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
1BZN-3.5
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Trailed
Arbor Configuration
Vertical Shaft
Color
Green/Yellow/Blue
Model
1bzn-3.5
Weight
2100
Working Width
3.5
Working Depth
20-30
Qty. of Discs
28
Dia. of Disc
660
Thickness of Disc
6
Transport Package
Iron Frame Box
Specification
CE, RoHS, SGS, GMP
Trademark
DADI
Origin
Shandong Yucheng
HS Code
8433110000
Production Capacity
10000PC/Year
Product Description
1BZN series extra-heavy-duty off-set disc harrows are mainly used for cleaning away stubble of plants before tillage, or uncultivated land and in sticky heavy clay soil fields. They could be used as a plow for primary tillage in dry cultivated fields. Their discs have been divided into two gangs notched discs, the dislocation of the design for front and rear disc gang, and disc gang on both sides of V to disc overall non-symmetrical, work angle can be adjusted. The surface of the field after harrowing is level and the crushing and clearing ability of the harrow is satisfactory.1BZN series harrows have three varieties disc spacing for choices,different disc spacing has different effect: -230mm and 240mm suitable for multi-purpose;-270mm suitable for deep coarse plow stubble plowing,or without the plow surface farming. The series disc harrows can be freely choosed different sizes discs according to actual needs. And can changed the weight of the disc harrow by filling method. All fitted with hydraulic tubelyss rubber wheel for transport. They are easy to be transported and change direction on the edge of fields.
| Model | unit | 1BZN-2.3 | 1BZN-2.5 | 1BZN-3.0 | 1BZN-3.5 | 1BZN-4.0 | 1BZN-4.5 | ||||||
| size | cm | 520*250*136 | 520*280*136 | 520*330*136 | 540*380*136 | 550*430*136 | 582*480*136 | ||||||
| Weight | kg | 1660 | 1760 | 1930 | 2100 | 2380 | 2580 | ||||||
| Width | m | 2.3 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | ||||||
| Depth | cm | 24 | |||||||||||
| Spacer | mm | 270 | |||||||||||
| Discs | pc | 18 | 20 | 24 | 28 | 32 | 36 | ||||||
| blade | mm | 660×6 | |||||||||||
| Type of bearing | | The double-sealed grease immersed bearings, double taper roller | |||||||||||
| Bearing | set | 20 | 22 | 24 | 28 | 32 | 36 | ||||||
| Axle of disc | mm | Round ∮42 | |||||||||||
| tyre | set | 2 | |||||||||||
| Tyre model | - | 11L-15,12PR | |||||||||||
| Productive | ha/h | 1.3 | 1.5 | 1.7 | 1.9 | 2.2 | 2.5 | ||||||
| Power | kw | 53-66 | 53-73.5 | 58.8-88 | 73.5-100 | 88-110 | 100-120 | ||||||
| linkage | | Trailed | |||||||||||
