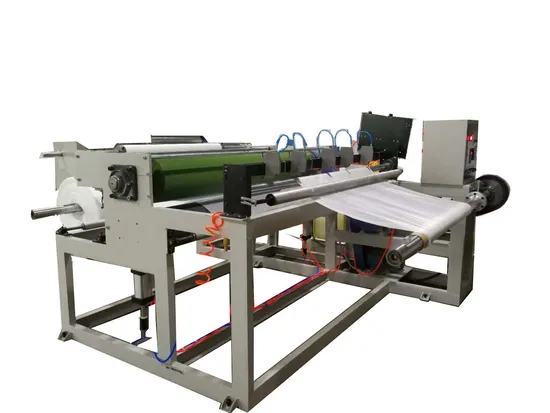

Rsd-2000widely Excellent Perfomance Sheet EPE Foam Laminating Machine

Product Description

Baby Play Mat Plastic Coating/Lamination Machine Play Mats are products made form sticking EPE (pearl cotton) sheet and colored printing PE film with a layer of PE.This is one composite extrusion production line with 2050 mm width specifications, made by one extrusion production line and the auxiliary equipment. Technological process:Main winding roll - secondary winding- extruding and compounding - cut edge - rewinding. Main features validate width: 1500-2050mm.
roller width: 2200mm.
extrusion thickness: thickness evenness 3%.
mechanical speed: maximum 50m/min
screw specification: equivalent diameter of 110mm. the maximum roll diameter:1500mm.
electrical control mode : PLC programmable controller, man-machine interface operation.
drive motor: ac inverter motor.
inverter: ac digital vector control frequency converter.
temperature control mode: thermostat control, 0-400 ºC, the accuracy of 1 ºC
power supply: three-phase 380V,50HZ.
cooling water temperature:13 to 25 ºC , flow rate:30 m/h, water pressure >0.2 Mpa
compressed air: over 0.6mpa.
extruder heating mode: cast aluminum heating. EPE LAMINATION MACHINE It is used to compound a layer of plastic film or aluminum film on EPE sheets. The machine has embossing function. It adopts high temperature oil-electric heating method, and has circular air knife for cutting. The composite material may be embossed or glossy.
