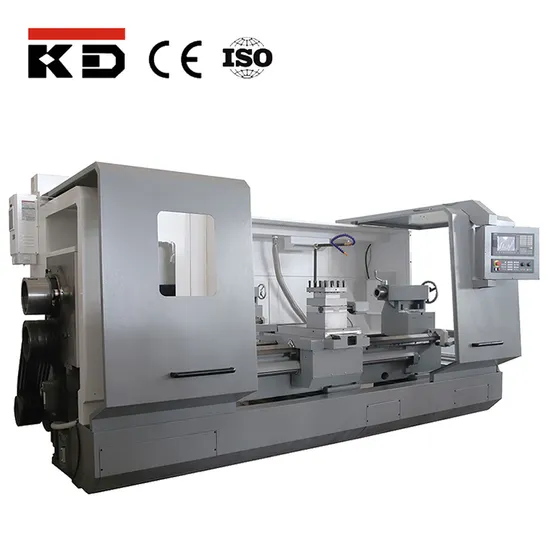

CNC Pipe Thread Big Bore Lathe CNC Lathe Machine Wholesale Price Custom
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CKG200
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Spindle Bore
210mm
Spindle Nose
A2-15
Bed Width
560mm
Main Motor
18.5kw
Max. Swing Over Bed
900mm
Max. Swing Over Carriage
560mm
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
180 Sets/ Year
Product Description
ITEMS | CKG200 |
Max. swing over bed | Ø 900mm |
Max. swing over carriage | Ø 550mm |
Width of bed | 560mm |
Maximum turned length | 2000/3000mm |
Max. turning length | 1350/1790/2800mm |
Spindle nose | Ø 50- Ø 200 mm |
Spindle bore | A2-15 |
Cone hole diameter and taper of spindle hole | Ø 210mm |
Steps of spindle speed(Manual) | 4 gears(stepless in each) |
Range of spindle speed | 10~60 20~115 35~205 65~380 rpm |
Rapid feed for Axis X | 5m /min |
Rapid feed for Axis Z | 10m /min |
Max. travel of Axis X | 500mm |
Max. travel of Axis Z | 1850/2850mm |
Min. input | 0.001mm |
Tool post stations | 4 station |
Tool cross section | 40× 40 mm |
External diameter | Ø 100mm |
Taper of bore | MT. No. 6 |
Max. Traverse | 230mm |
Power of main motor | 18.5 KW |
Power of cooling pump | 370W |
Overall dimensions(L× W× H) | 4000/4500/5500x1900x1860 |
Net weight | 5500/6000/6800kg |
