Basic Info.
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
88.00cm * 50.00cm * 39.00cm
Package Gross Weight
26.000kg
Product Description

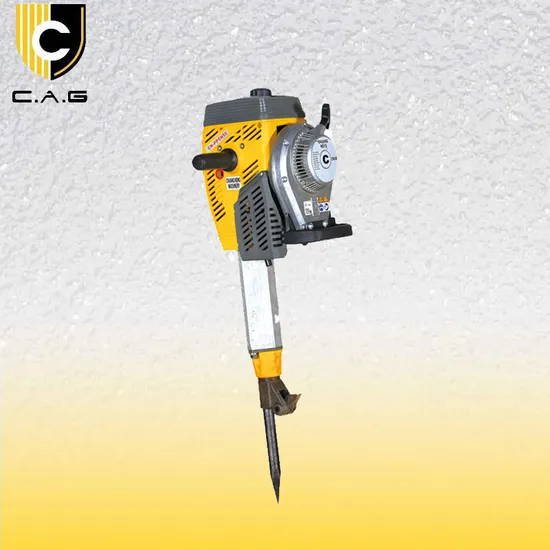

C.A.G's Gasoline Breaker is equipped with a 63cc 2-stroke petrol engine, and its improved engine cooling system makes the engine work well at lower engine temperatures. Its lighter and smaller design means the unit only weighs 23kg total and delivers 55 joules of single stroke impact energy. C.A.G petrol breaker is ideal for use in track construction and railway network applications
The crusher takes 1E45F-3A gasoline as drive motor, so it has a strong power to work efficiently. The structure of the machinery is compact and reasonable.It also has a fine appearance, on the other hand it is convenient to carry and comfortable to operate. Above all, it's safe to use and easy to maintain. Feature:1. Break engine: Single cylinder air cooled gasoline engine
2. Operating weight: 26kg
3. Impact frequency: 1300/min
4. Impact energy: 55J
5. Carton size: 880*500*390mm
SPECIFICATION
| Model | PBK55 |
| Engine Model: | 1E45F-3A |
| Engine Type: | single cylinder, 2-stroke, forced air cooling |
| Displacement: | 80cc |
| Max. Output: | 2.0kw/4400r/min |
| Fuel Consumption: | ≤480g/kw.h |
| Work Weight: | 26kg |
| Impact Frequency: | 1300/min |
| Impact Energy: | 55J |
| Clutch Rotation: | 2500r/min |
| Work Rotation: | 4250r/min |
| Overall Dimensions: | 840x470x350mm |
| Carton Size: | 880x500x390mm |
