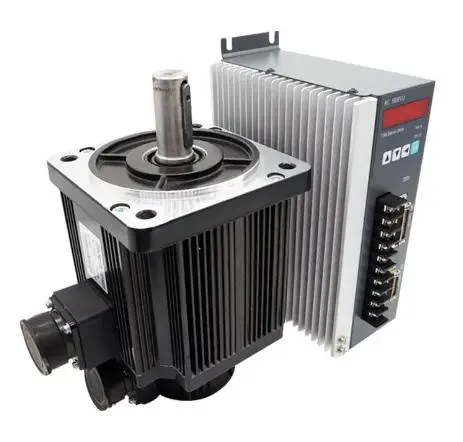

40/60/80/110/130 AC Servo Motor Driver
Basic Info.
Model NO.
40/60/80/110/130
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control, Driving
Number of Poles
6
Operate Mode
Three Phase Double Beat
Type
Electromechanical
Certification
ISO9001, CCC
Brand
Lswcbe
Motor
Servo Motor
Driver
Servo Driver
MOQ
1
Phase
2
Transport Package
Paper Box/Wooden Box
Specification
40/60/80/110/130
Trademark
LSWCBE
Origin
China
Production Capacity
1000000
Packaging & Delivery
Package Size
40.00cm * 30.00cm * 30.00cm
Package Gross Weight
5.000kg
Product Description
| Stepper Motor Series--single shaft | |
| 20BYGH | 0.014N.M ,0.018N.M ,0.024N.M |
| 28BYGH | 0.3N.M,0.4N.M, 0.6N.M, 0.8N.M |
| 35BYGH | 0.5N.M,0.8N.M,1N.M |
| 39BYGH | 0.6N.M,1N.M,1.2N.M |
| 42BYGH | 1.6N.M,2.2N.M,2.6N.M,3.8N.M |
| 57BYGH | 0.55N.M,0.8N.M,0.62N.M,0.9N.M,1.1N.M,1.4N.M,1.8N.M,2.0N.M,2.2N.M,2.5N.M,2.8N.M |
| 60BYGH | 0.85N.M,1.6N.M,1.8N.M,2.2N.M,2.6N.M,3N.M,3.6N.M |
| 86BYGH | 3.5N.M,4.5N.M,7N.M,8N.M,8.5N.M,10N.M,12N.M,12.5N.M |
| 110BYGH | 11N.M,16N.M,21N.M,28N.M |
| Stepper Motor Series--single shaft With Brake | |
| 86BYGHS | 4N.M,6.2N.M,8N.M,12N.M |
| 110BYGHS | 11N.M,16N.M,21N.M |
| Closed Loop Motor Series--single shaft | |
| 42BYGHB | 0.28N.M,0.4N.M,0.52N.M,0.65N.M |
| 57BYGHB | 1.1N.M 2.2N.M 2.8N.M |
| 60BYGHB | 1.6N.M |
| 86BYGHB | 4N.M,8.7N.M,12.5N.M |
| Planetary Reduction Motor | |
| 28BYGHX | Ratio:3.71 5.18 14 19 27 51 71 100 139 189 264 369 516 721 |
| 42BYGHX | Ratio:3.71 5.18 14 19 22 27 51 59 71 82 100 115 139 189 264 369 516 721 |
| 57BYGHX | Ratio:3.6 4.25 13 15 18 47 55 65 77 168 198 234 276 326 |
| Eccentric Deceleration Motor | |
| 57BYGHP | 0.55N.M,1.1N.M,1.8N.M |
| 86BYGHP | 4N.M,6N.M,8N.M |
| 104BYGHP | 8N.M |
| Servo Motor Set | |
| 40 servo | 0.159NM,012KW |
| 60 servo | 0.63N.M,0.4KW; 1.3N.M 0.4KW; 1.9N.M 0.6KW; |
| 80 servo | 2.4N.M 0.75KW; 3.5N.M 0.73KW; 4N.M 1KW |
| 90 servo | 2.4N.M 0.75KW;4N.M 1KW |
| 110 servo | 2NM 600V 3000RMP, 4NM 1.2KW,5NM 1.5KW, |
| 130 servo | 4N.M 1KW,5nm 1.3kw,6N.M 1.5KW,6NM 1KW,7.7NM 2KW,10NM 1.5KW,10NM 2.6KW,15NM 2.3KW,15NM 3.8KW |
| Brushless Motor | |
| 57BL | 0.11NM,0.22NM,0.32NM,0.42N.M |
| 60BL | 0.65NM,0.95NM,1.28NM |
| 80BL | 0.7NM,1.2N.M |
| 86BL | 1.8N.M,2.5N.M |
| 110BL | 3.2NM,4.8N.M,6.4N.M |
| Stepper Driver |
| DM860 TB6600 DM556 DM542 DM860H TB6560 DM856 DM865 DM565 DM3722 DM860H for blue DM542 DMA860H HB-B3C |
| Closed Loop Driver |
| HBS57H HBS86H HB808C |
| Driver and Controller-i0 type |
| DM856-I0 DM542-I0 DM556-I0 DM860H-I0 |
| Contoller |
| Mach3 4axis,DB25 5axis,DKC-1A,YS-1A,TC55V,DSC-1E |
| Swithing Power Supply |
| 250W-12V 250W-24V 350W-5V 350W-12V 350W-15V 350W-24V 350W-36V 350W-48V 350W-27V 350W-30V 350W-60V 350W-72V 350W-110V |
| 360W-12V 360W-24V 400W-5V 400W-12V 400W-15V 400W-24V 400W-36V 400W-48V 500W-12V 500W-24V |
| item | value |
| Warranty | 3months-1year |
| Place of Origin | China |
| Zhejiang | |
| Brand Name | LSWCBE |
| Model Number | SD300-30AL-GBN |
| Type | SERVO MOTOR |
| AC Voltage | 220V |
| Brand Name | LSWCBE |
| Product Name | AC servo motor driver set |
| Installation mode | Flange type |
| Rated power | 2300W |
| Rated voltage | 220V |
| Rated torque | 15N.m |
| Rated current | 12A |
| Rated speed | 2500rpm |
| Shaft end specification | With keyway |
| Service | Online service |
