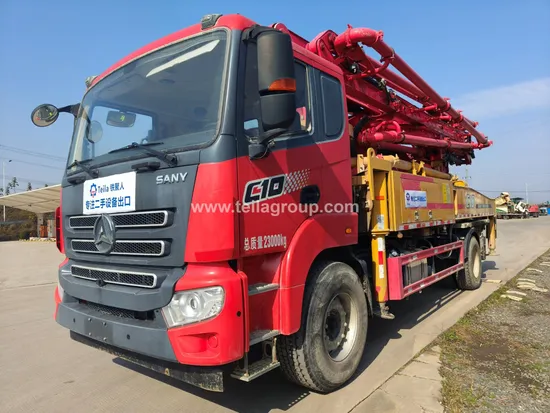

Used San*Y Truck-Mounted Concrete Pump Original 2021 39m Concrete Pump

Product Description

Product Description
Original 2021 San*y 39m Concrete Pumps with good condition
· · Professional Supplier for Used Concrete Machine for Over 10 Years
· · Machines made by International authoritative-certificate lighthouse factory & world-class manufacturing capability · · Optimized key parts with ultra-high strength steel · · Open hydraulic system & high configuration · · SY customized chassis & SY DEUTZ Engine
Product Parameters

Vehicle parameters
Length	10050mm
Width	2530mm
Height	3850mm
Total weight	23000kg
Boom leg parameters
Boom vertical height	38.1m
Boom horizontal length	33.4m
Boom vertical depth	23.5m
Minimum unfolded height	9.2m
The length of the first section arm	7480mm
First section boom angle	89°
Second section arm length	5865mm
Second section arm rotation angle	180°
The length of the third section arm	5940mm
Third section arm rotation angle	180°
The length of the forth section arm	7300mm
Forth section arm rotation angle	230°
The length of the fifth section arm	7510mm
Fifth section arm rotation angle	180°
Turntable rotation angle	±360°
Expansion width of front outriggers	6200mm
Rear outrigger expansion width	8500mm
Pumping system parameters
Concrete theoretical displacement low pressure	120m³/h
Concrete theoretical displacement high pressure	70m³/h
Theoretical pumping pressure low pressure	8Mpa
Theoretical pumping pressure high pressure	13Mpa
Conveying cylinder inner diameter	230mm
Conveying cylinder stroke	1600mm
Hydraulic system	Open mode
System oil pressure	32Mpa
Fuel tank capacity	320L
Water tank volume	700L
Conveying pipe diameter	125mm
End hose length	3m
End hose diameter	125mm
Chassis parameters
Chassis brand	San*y
Chassis model	SYM5230THB1E
Engine model	D07C5-313E1
Engine maximum net power	220/2300kW/rpm
Emission standards	EURO V(with DPF)
fuel tank volume	300L
Displacement	7.41L
Max speed	85km/h

Note: The model parameter configuration and other information on this page are for reference only. The actual model parameter configuration and other information are subject to in-store sales. The right of interpretation belongs to the manufacturer.

Detailed Photos
Company Introduction:
Teila was established in 2010, developed by Heny heavy machinery company, is the most professional used construction machinery trading platform and construction machinery re-manufacturer in China. Teila adhere to the development vision of "creating the most professional used construction machinery trading platform in China". After years of hard work and development, Teila has achieved the business development of the whole construction machinery industry, such as concrete machinery, lifting machinery, digging machinery, road machinery, piling machinery etc. Established a construction machinery service platform including "all kinds of used construction machinery equipment trading, construction machinery maintenance and re-manufacturing, overseas trade, parts supply chain, technical services etc. " and is committed to providing comprehensive, high-quality, efficient, safe and low-cost services for industry customers.
FAQ:
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on. Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard, our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:How soon can you respond client inquires?
A: Our team is consisted of a group of diligent and dynamic people, working 24/7 to respond clients inquires and questions all the time. Most problems can be solved within 8 hours.
6:What logistics ways you can work for shipment?
We can ship construction machinery by various transportation tools.
(1)For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East,
Oceania and Southeast Asia etc, either by countainer or RoRo/Bulk shipment.
(2)For inland neighborhood countries of China, such as Russia, Mongolia, Kyrgyzstan, Uzbekistan,Truck-menistan etc, we can send machines by road or railway.
(3)For light spare parts in urgent demand, we can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
