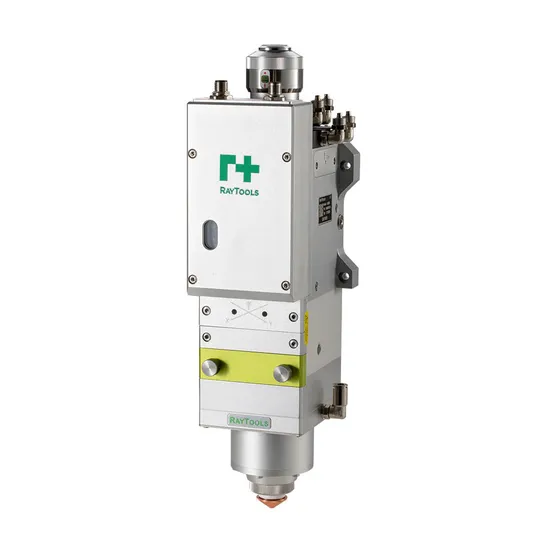

Raytools Bm110 Bm111 Bm06K BS12K Autofocus Fiber Laser Cutting Head for 2kw 3kw 6kw Metal Fiber Laser Cutting Machine

Product Description

1.Multiple Cover Glass Protection
Three cover glasses to protect focusing &collimation lens.
2.Auto Focusing
Automatic focusing, reducing human intervention, MAX focusing speed 170mm/s,Repeat accuracy 0.05mm.
3.Exellent Dustproof
IP65 class dustproof, patented protection cover glass catridge, All-body anti-dust design.
4.High-Speed Cutting
Cuts 12mm SUS304 at0.7m/min@3000W,Cuts 12mm Q235 at 1.2m/min@3000W.
1.Excellent Design
Optimized optical configuration and smooth and efficient air flow design significantly improve cutting quality and efficiency
2.Auto Focusing
Automatic focusing, reducing human intervention, automatic focusing range -12~+10mm,adjustment accuracy 0.05mm.
3.Multiple Cover Glass Protection
Collimation adds a protective lens to effectively protect the collimating lens.
4.Drawer Lense Assembly
Fast and simple replacement of protective lenses.
5.High Adaptability
With QBH, QD and other types of optical fiber interfaces, it can be adapted to various mainstream laser devices.
1.Fast Zoom
Using collimation and focusing, compared with focusing and focusing, the focus moves
faster and the focusing range is larger.
2.Intelligent Monitoring
With the temperature monitoring function of the lower protective lens, the temperature data can
be displayed in real time through the mobile APP or computer desktop window, and the overtem-
perature output alarm can effectively protect the optical path system of the cutting head.
3.Excellent Design
The integrated body design ensures sealing. Improve the QBH,G5 fiber interface, improve the compatibility of the laser, and no longer get stuck due to water leakage,rust, etc.
4.High Efficiency Cooling
Collimation and focusing lenses are both water cooled. Increase air flow cooling for nozzle, effectively protect the nozzle and ceramic part and the lifetime.
5.Multiple Cover Glass Protection
Four protective lenses are designed to effectively reduce the pollution caused by replacing the optical Excellent Design fiber and the protective lens, and greatly prolong the service life of the collimating and focusing lenses
